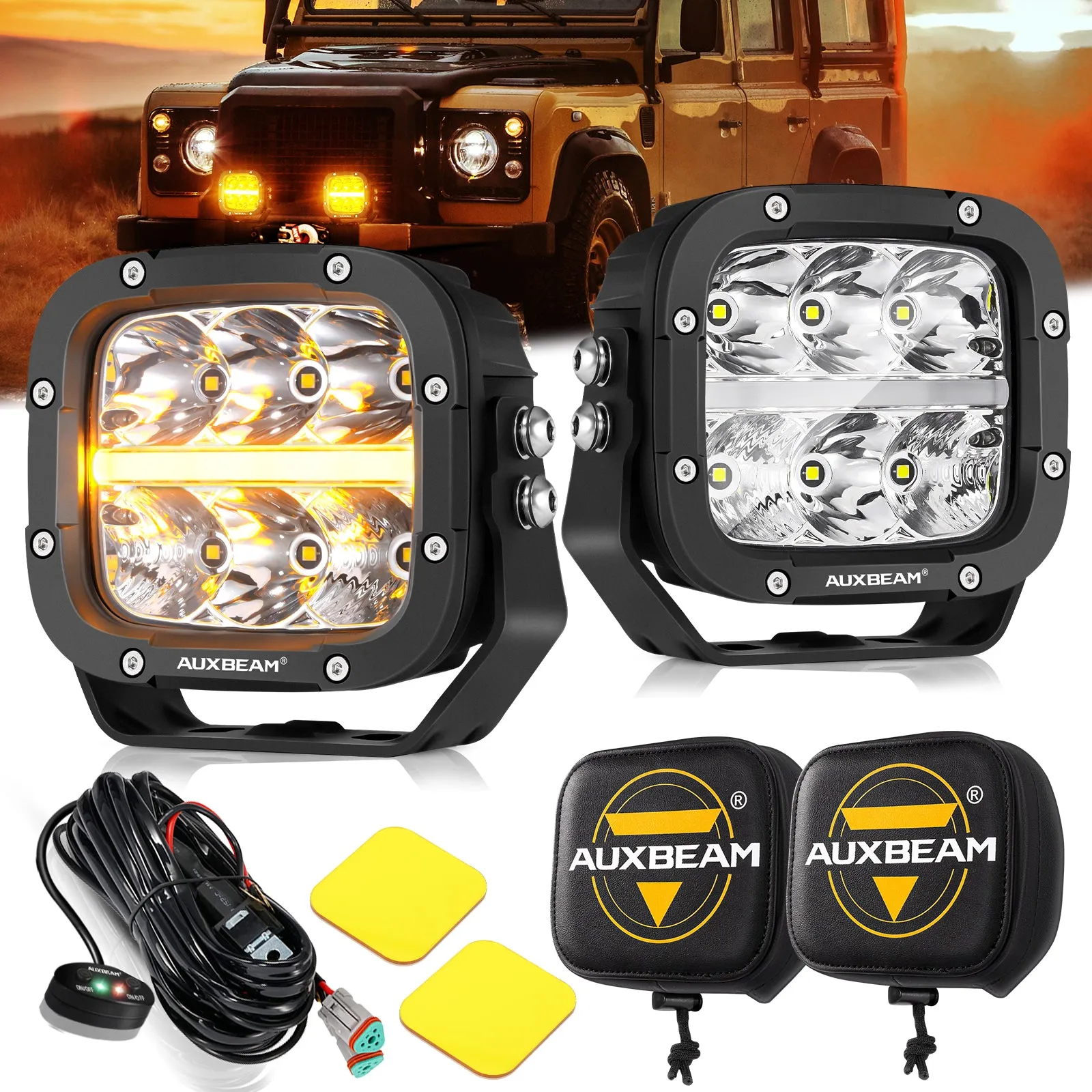

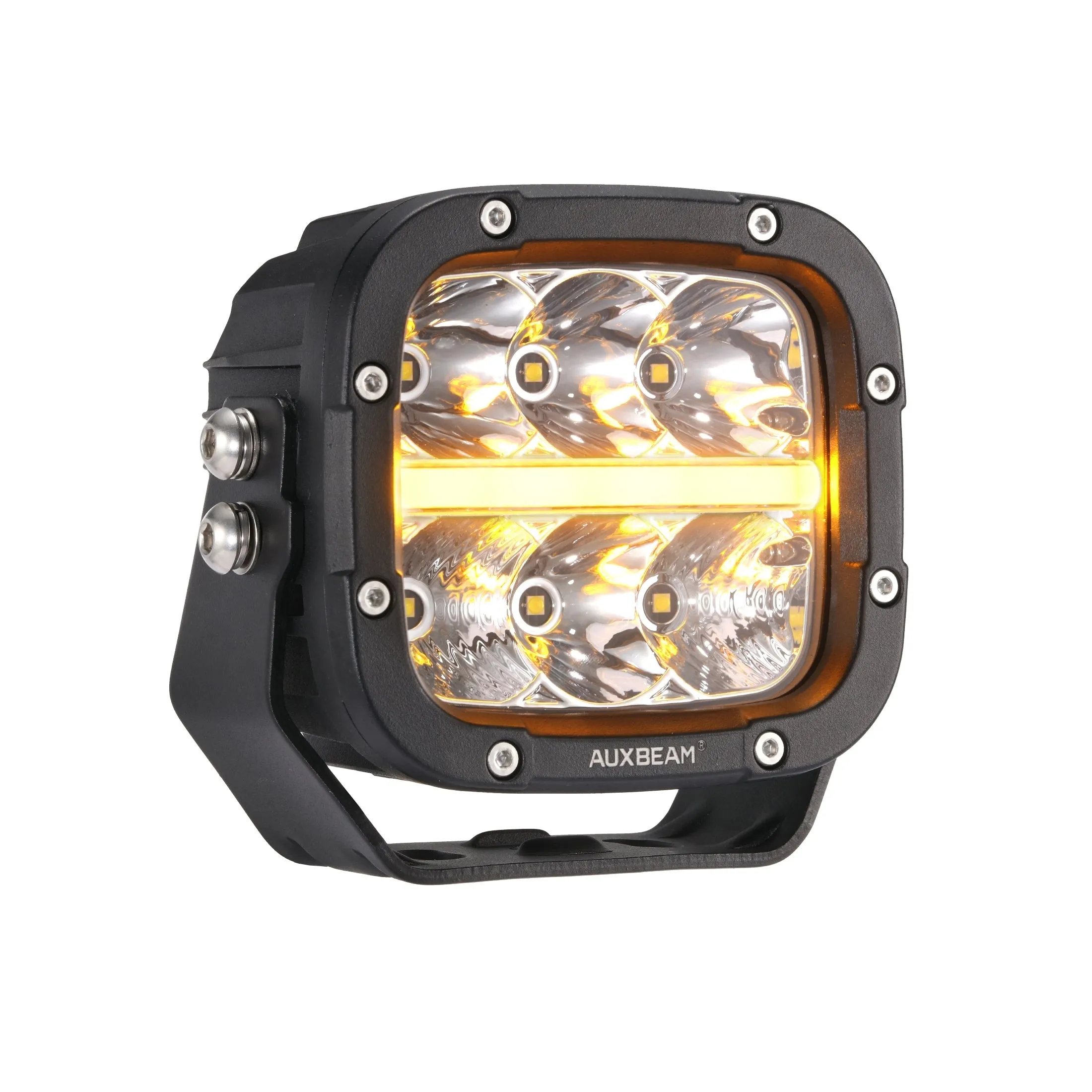

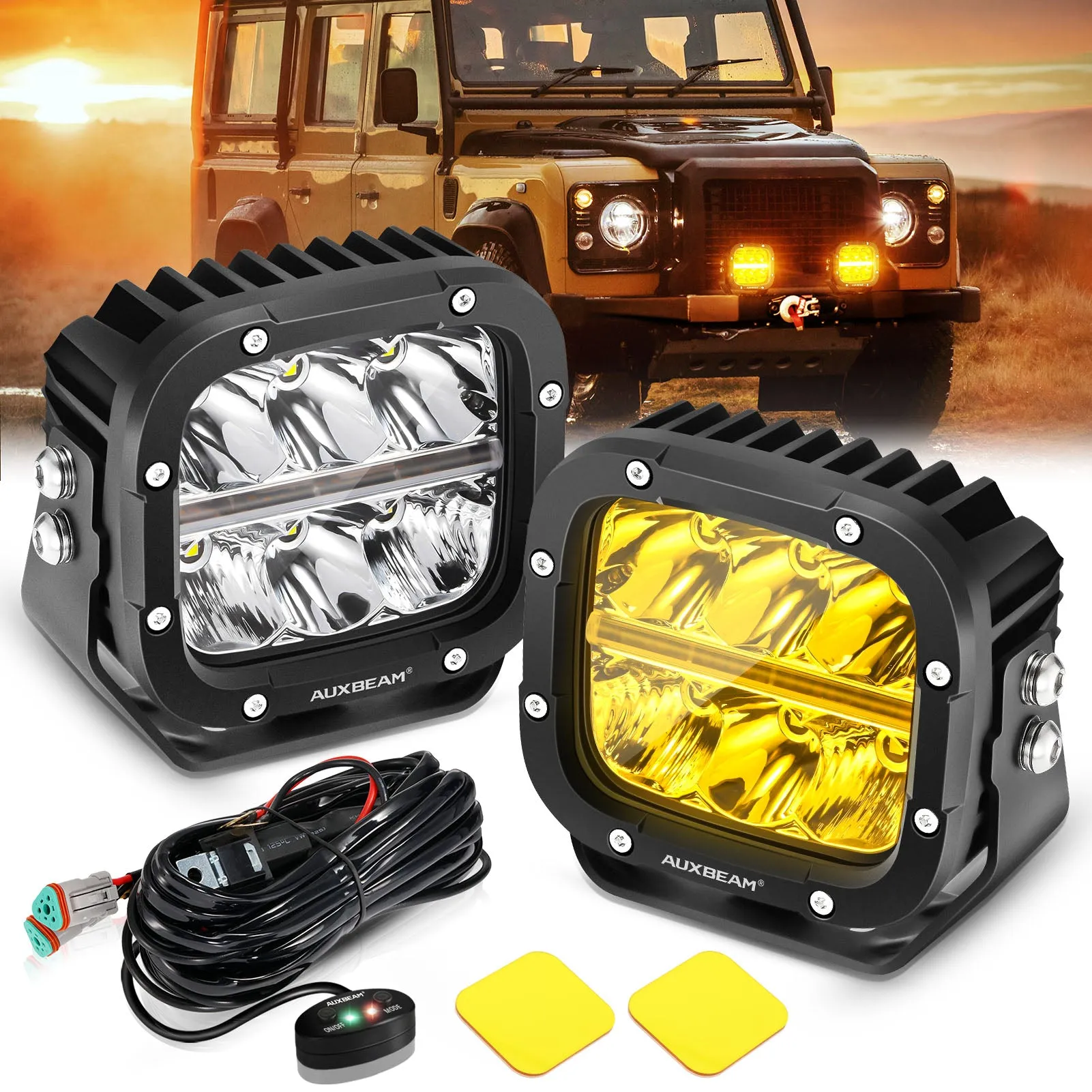

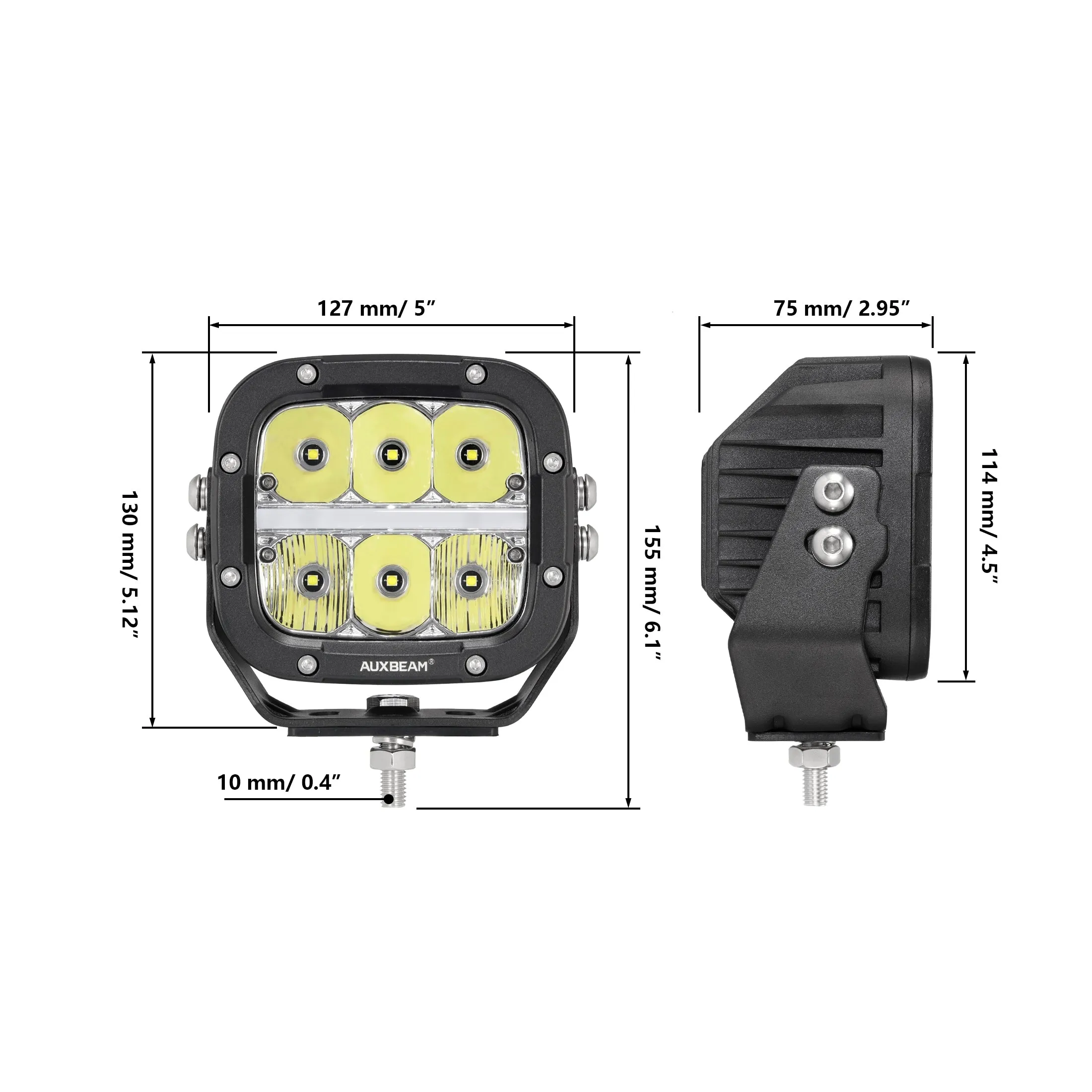

▶5 Inch LED Driving Lights
Features:

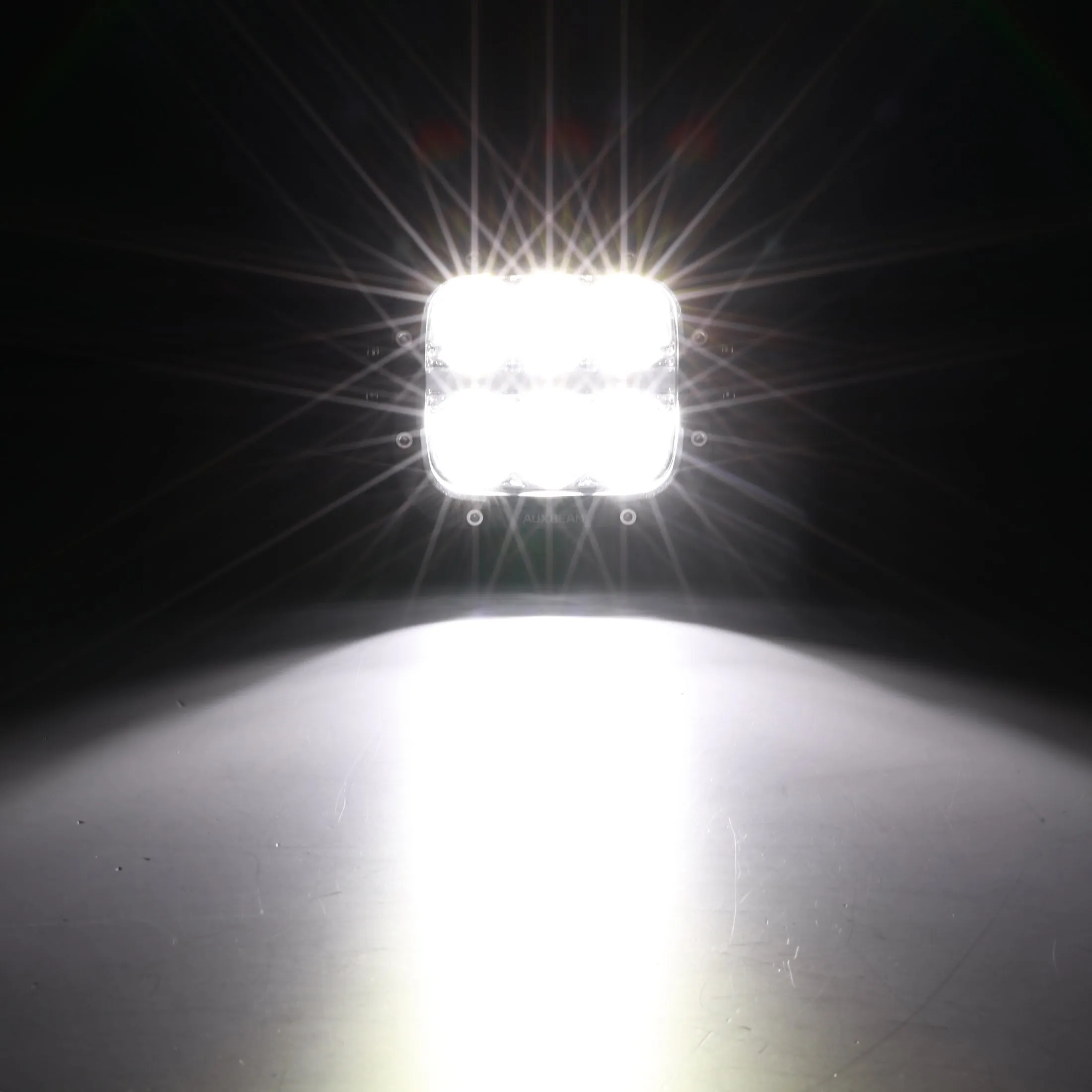

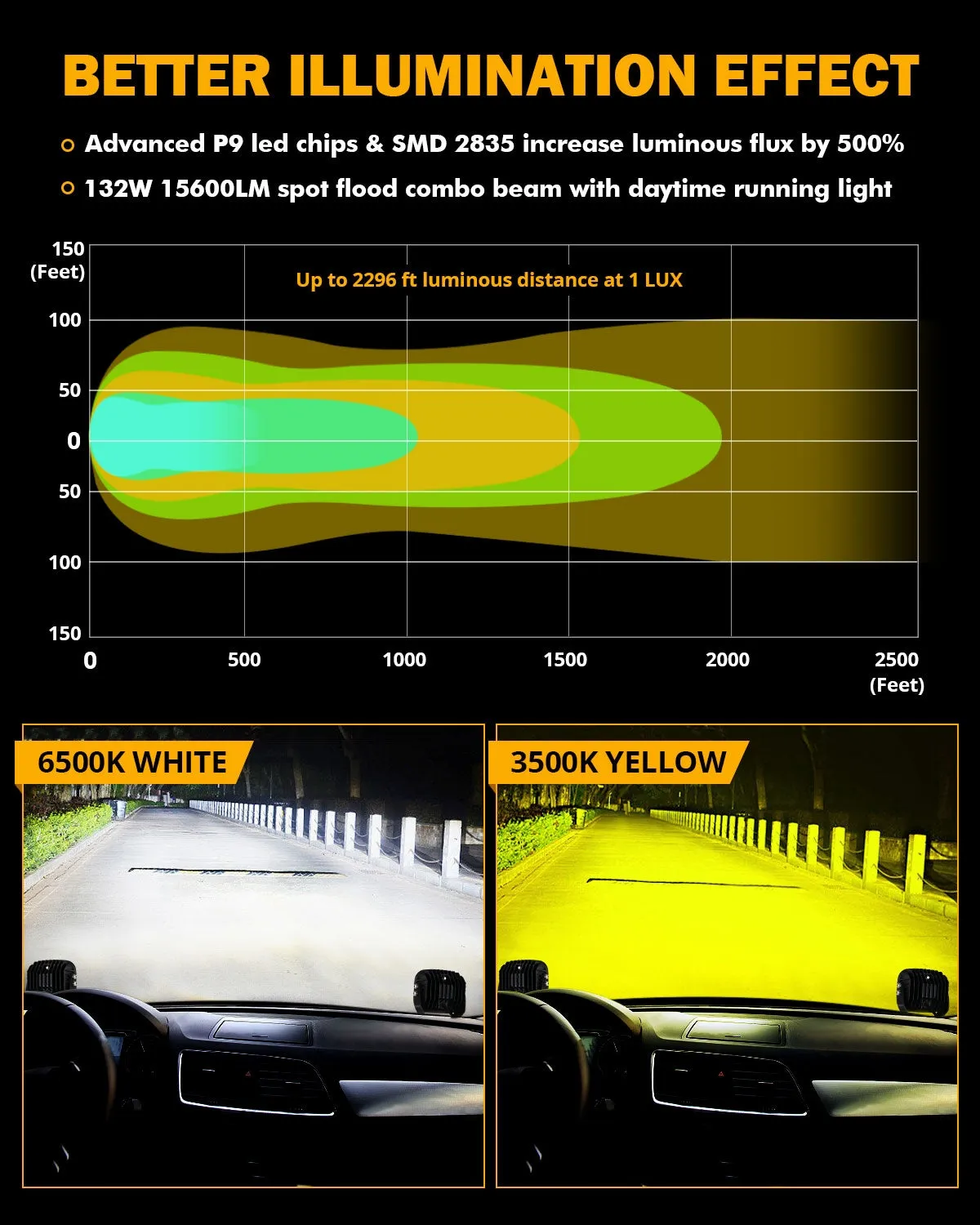

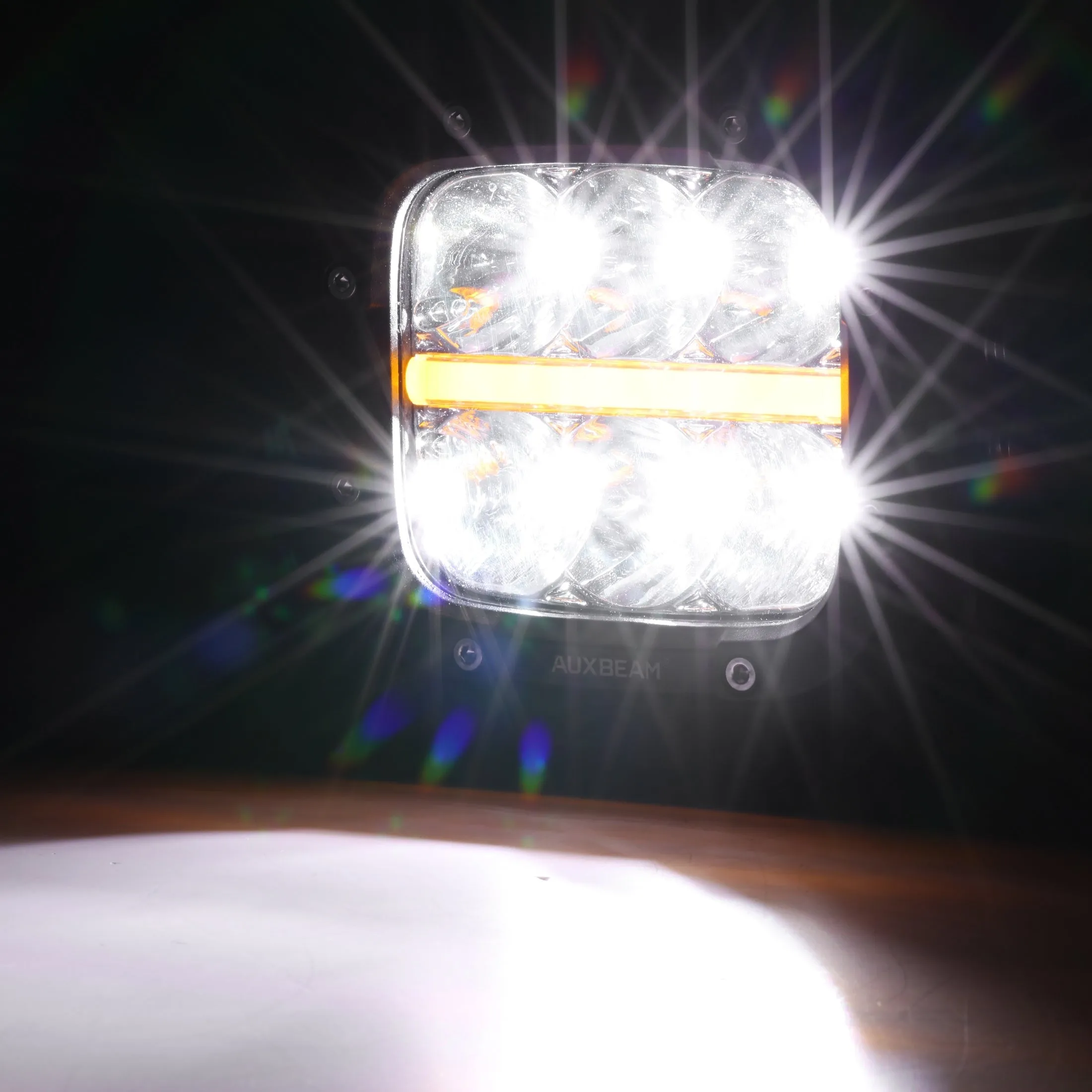

Super cool engineering combo beam pattern design and advanced LED chips provide super bright. The lights Illuminate the distant road and increase light intensity on the front side for safe driving.

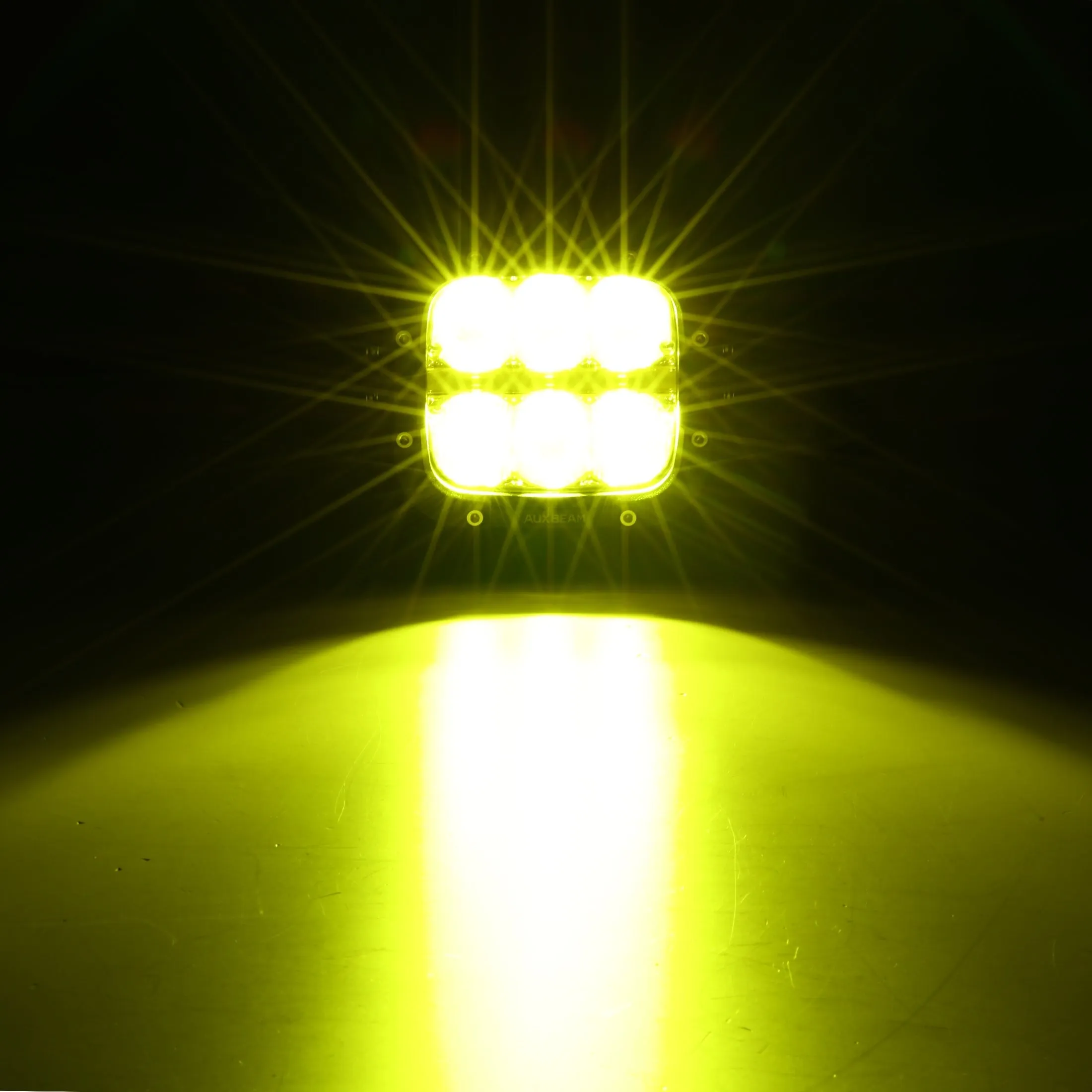

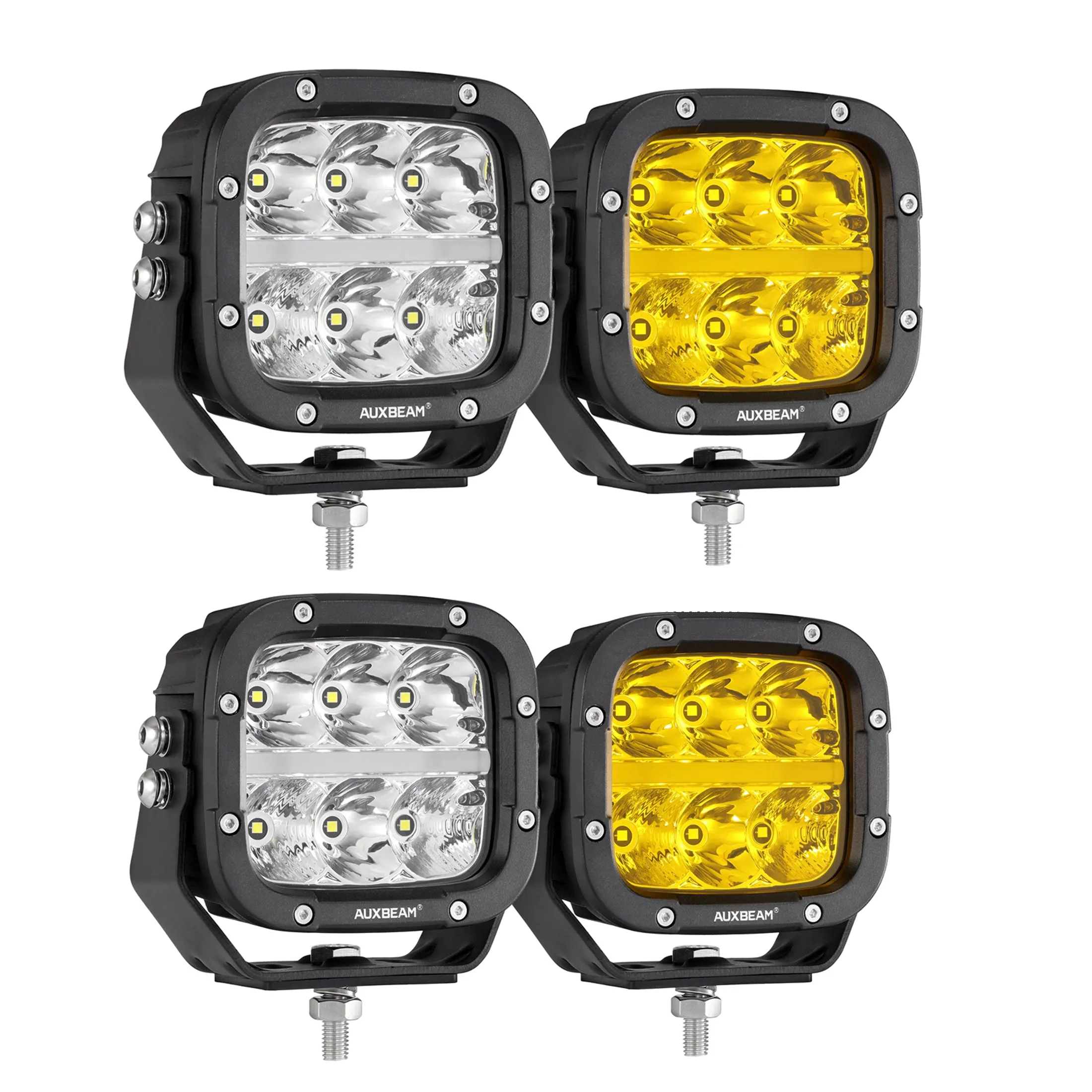

Additional amber masks of personality modify the light color. The cover is equipped with strong penetration color temperature for low visibility driving. It allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.

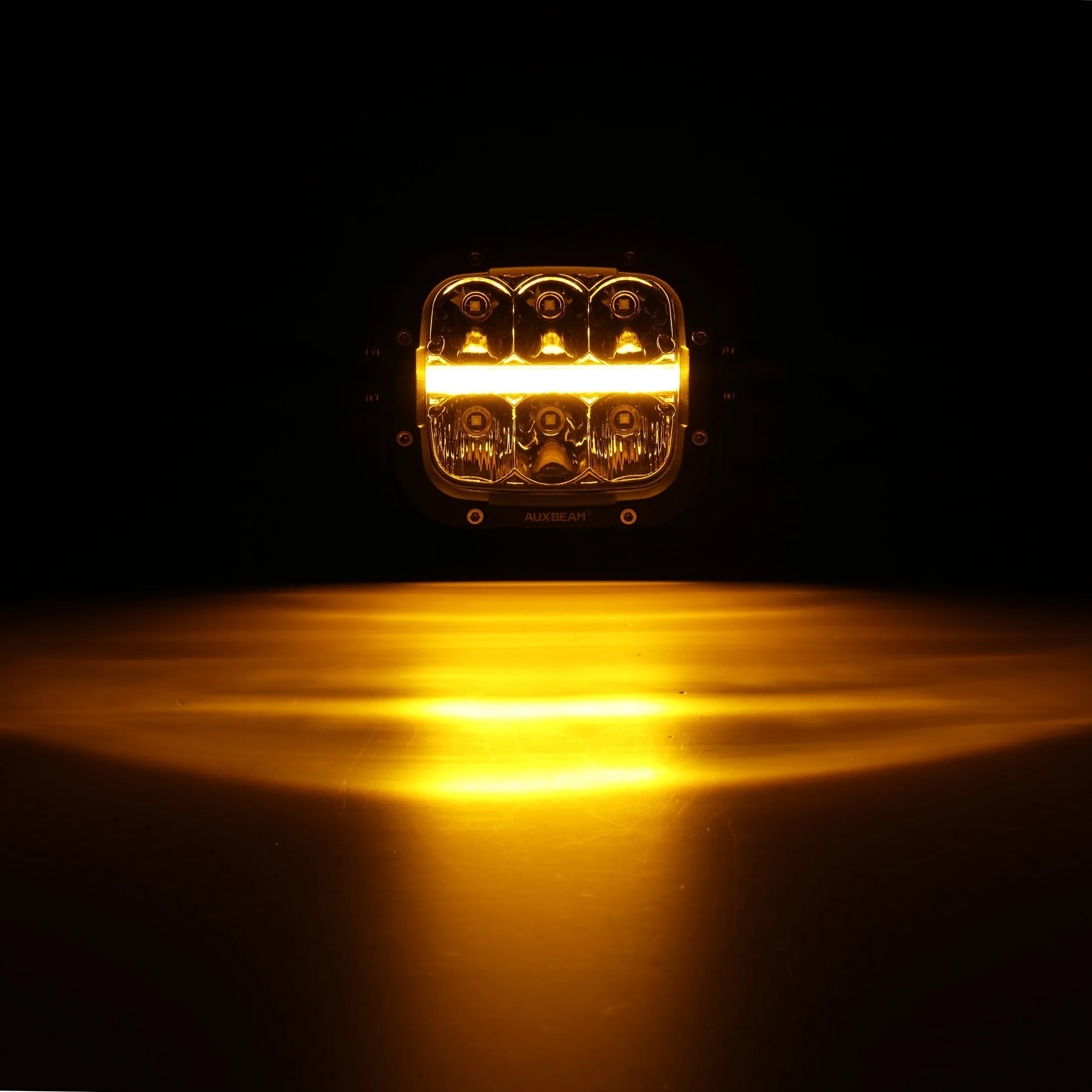

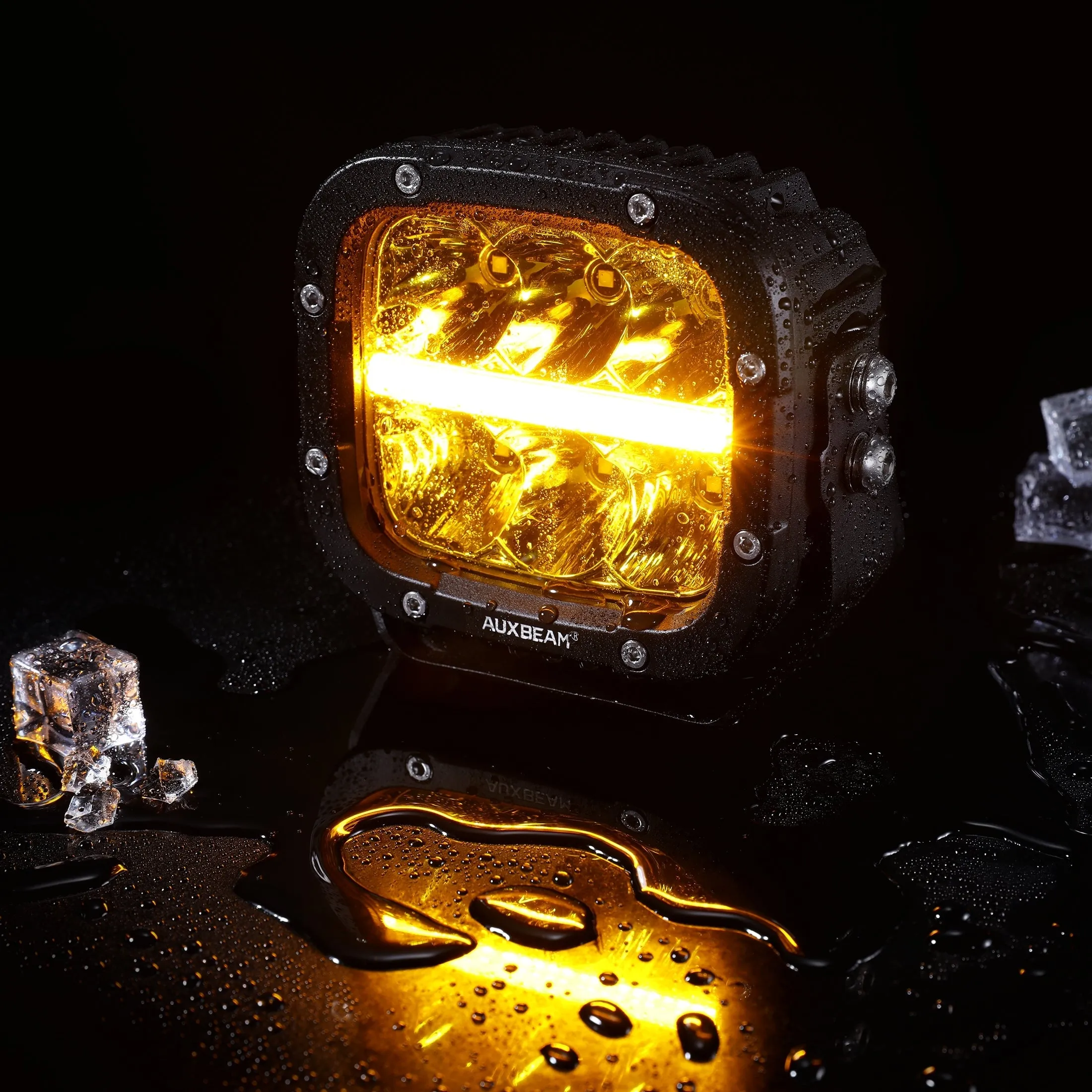

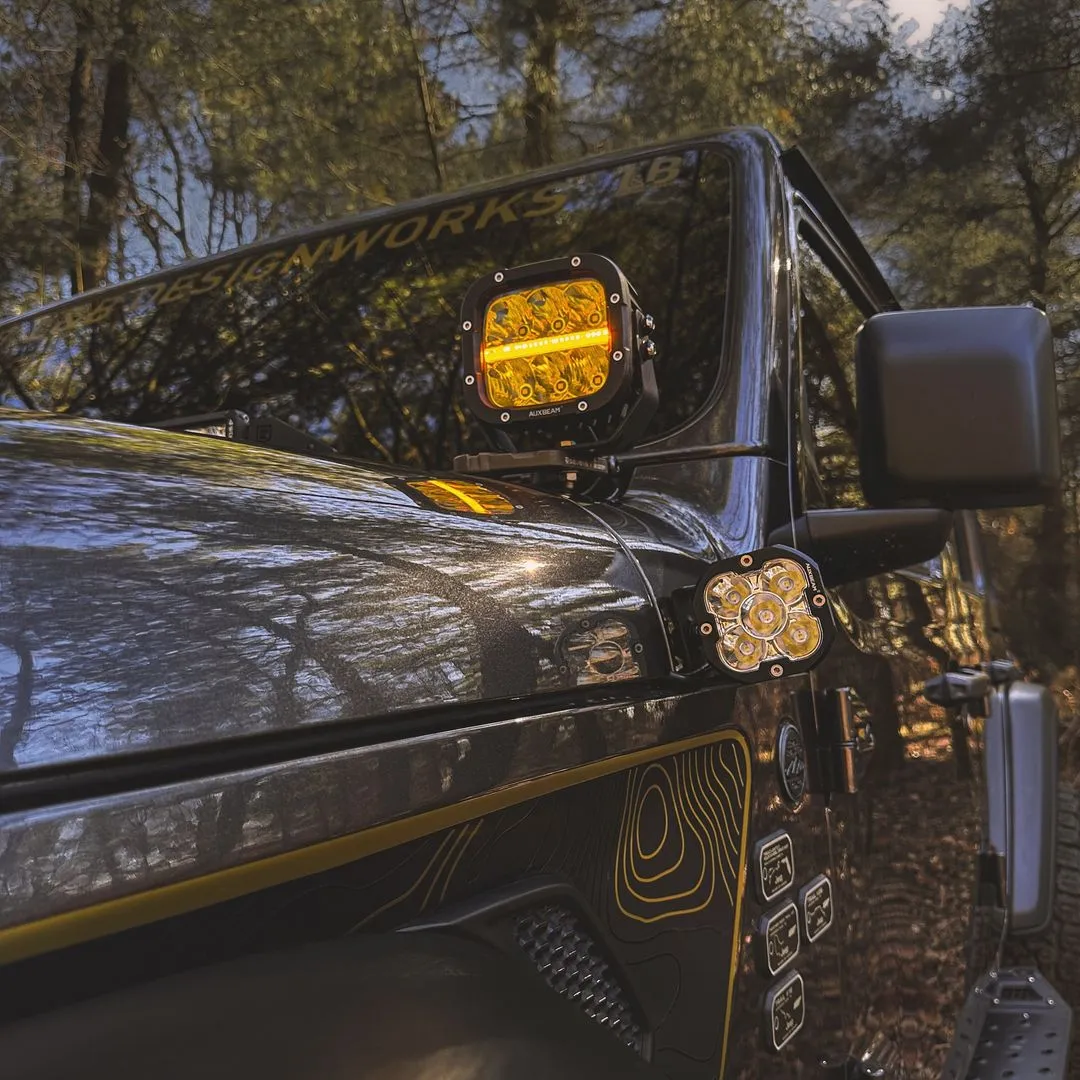

Strong penetrated Amber DRL, as the reverse lights, fog lights, or warning lights, gives your vehicle an attractive look and gets noticed on the road to avoid accidents.

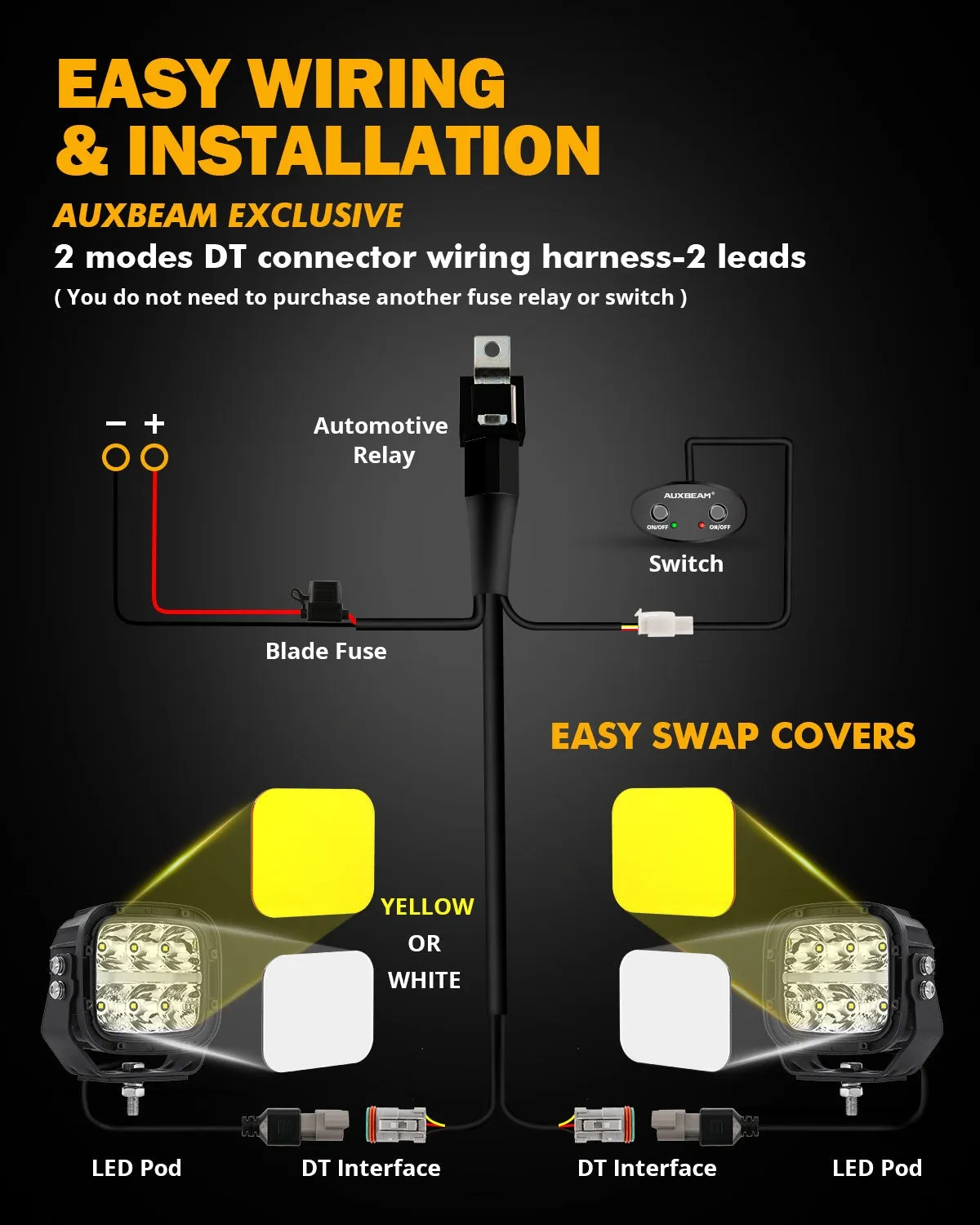

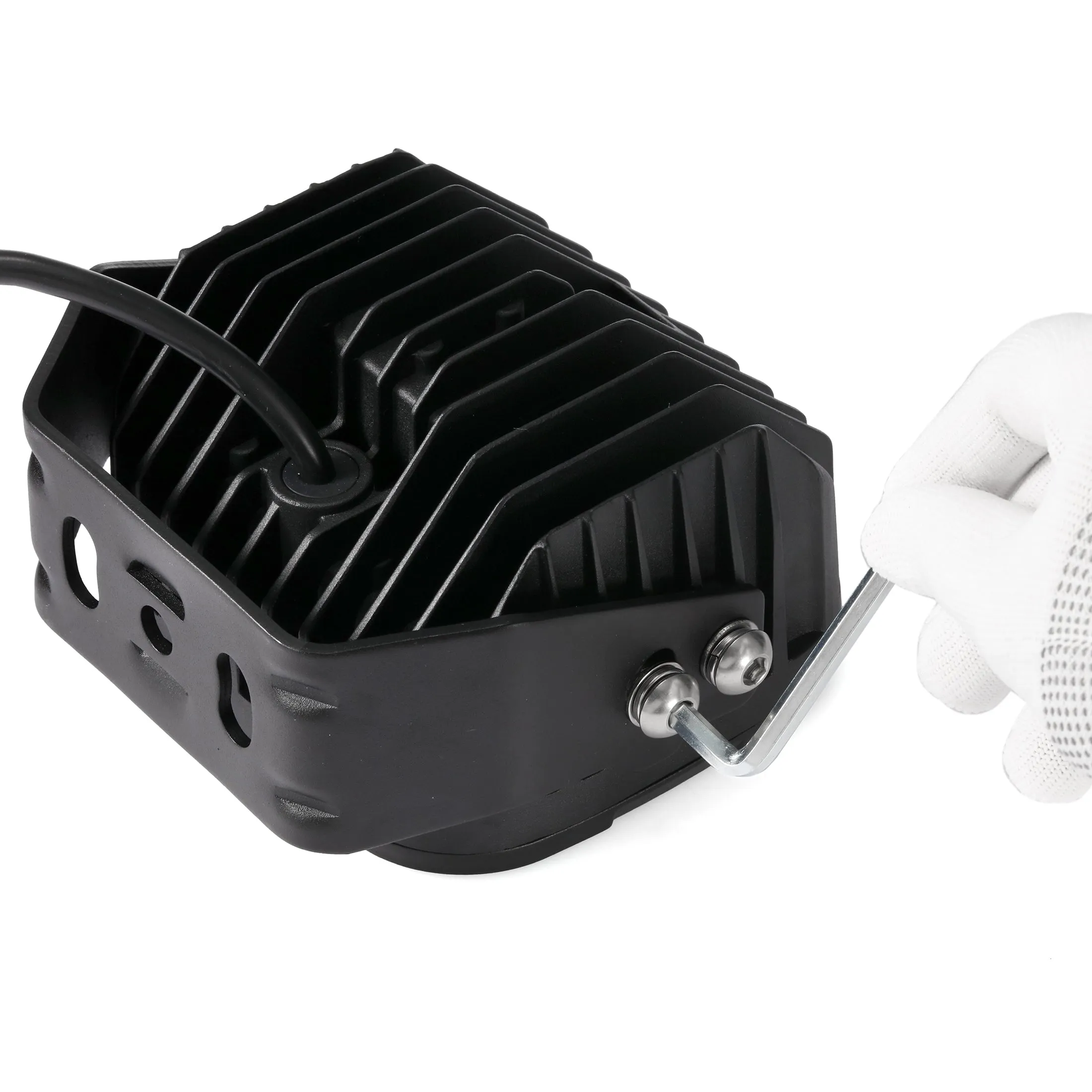

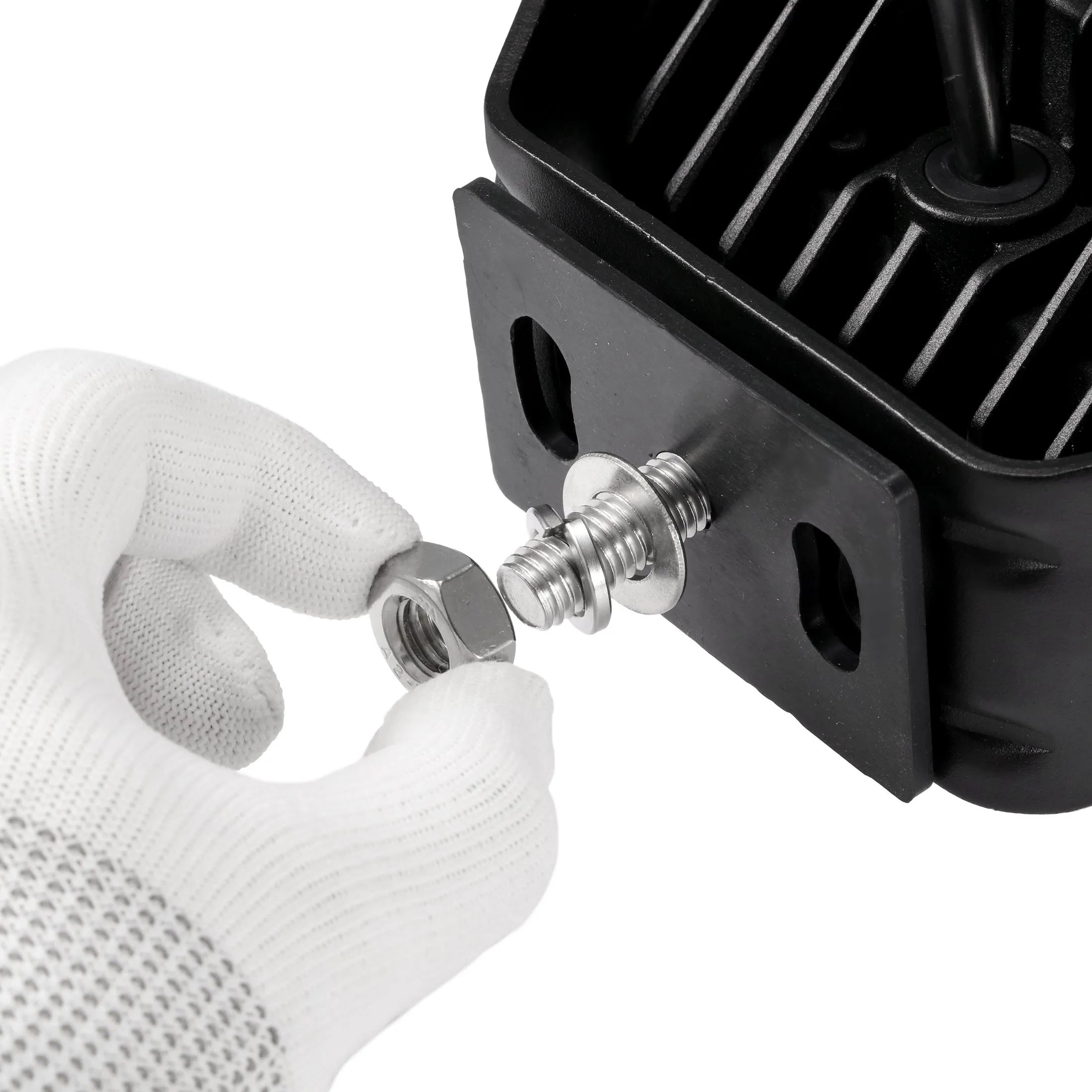

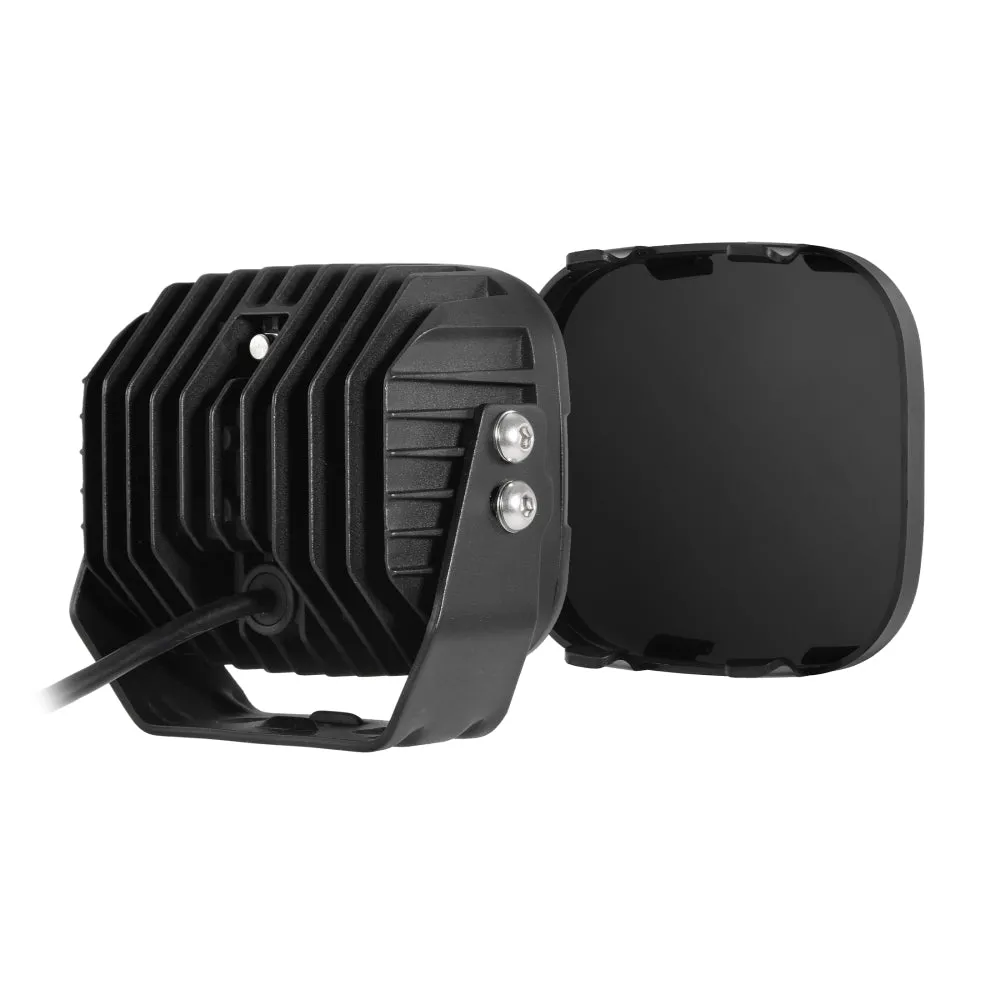

Unique bracket structure, high-strength adjustable bracket with gear, good seismic performance. It comes with 2 lead wiring harness kits including fuse relay and switch all in a set, pretty easy and quick hookup.
The innovative technique ensures stable current, no electromagnetic interference, and brightness output maintain stability not down.

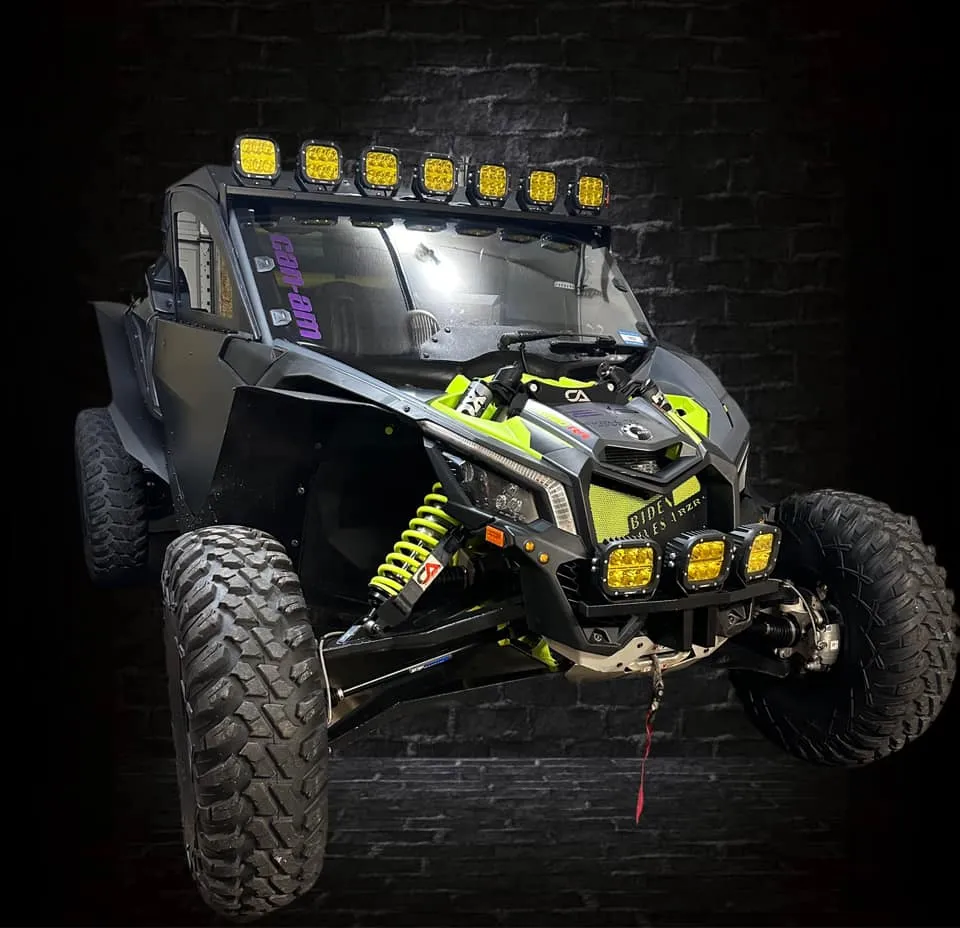

Come with the necessary accessories for easy installation, the lights fit different types of Off-Road, Jeep, Heavy Duty, SUV, ATV, UTV, Truck, Car, Boat, etc.

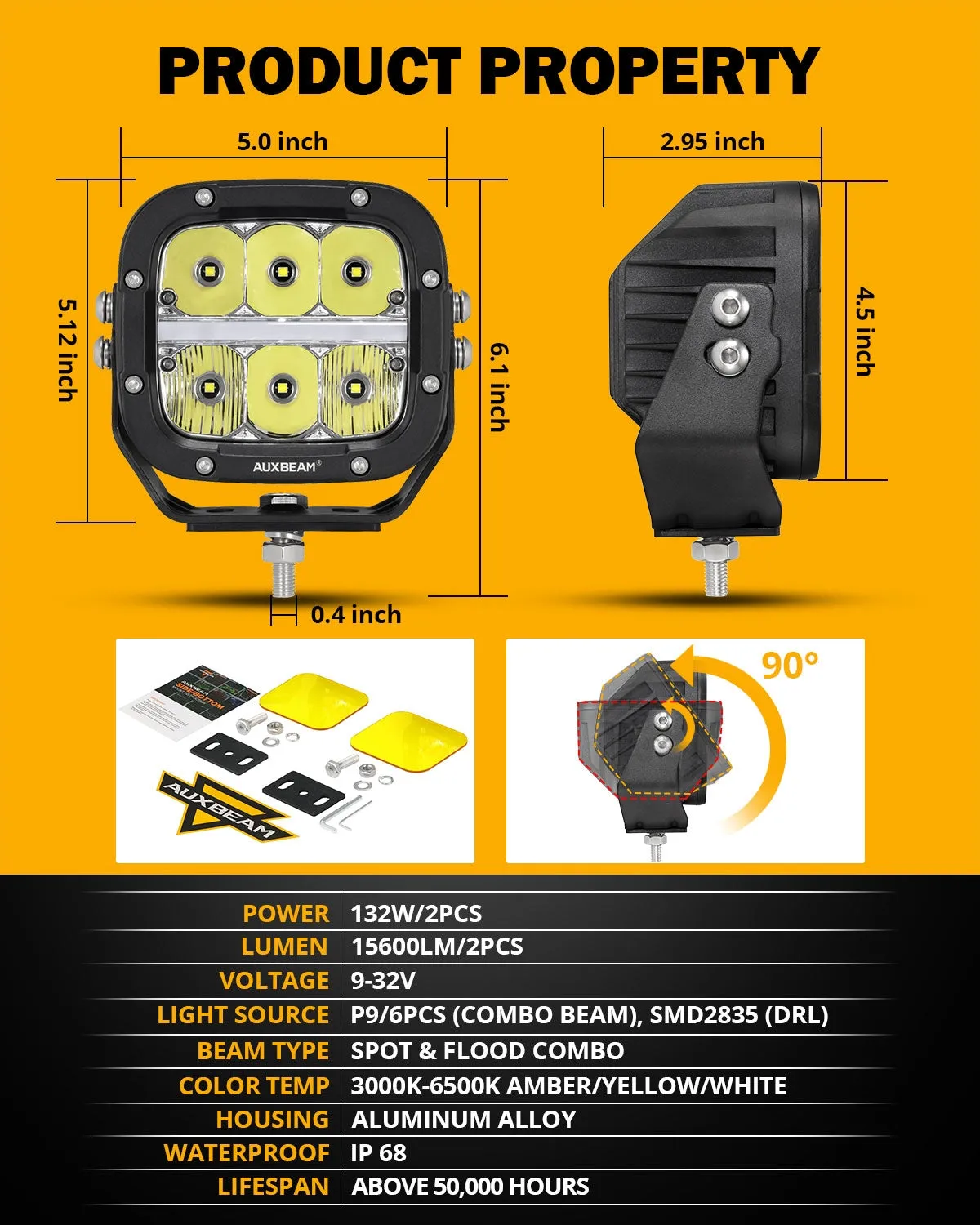

Specification:
Working Voltage: 12V-24V (Wiring harness Relay is 12V Only, can be replaced with 24V)
Power: 66W*2 (Spotlights 60W DRL 6W)
Lumen: 15600LM (14400LM DRL 1200LM)
Lens Material: PCB(White&Amber) SUPER CUP
Lamp Beads Model(each): P9 10W/PCS*6 2835 SMD 6W
Beam Pattern: Combo Pattern(4 PCS Spot 2 PCS Flood)
Light Color: White/Amber(Cover Changed) Amber DRL
Color Temperature: 5700-6500K
Waterproof Rate: IP68
Lifespan: 50,000 hours
Lamp Beads Model: 5050/7035
Light Color: 3000K Amber/6900K White (Cover Changed)

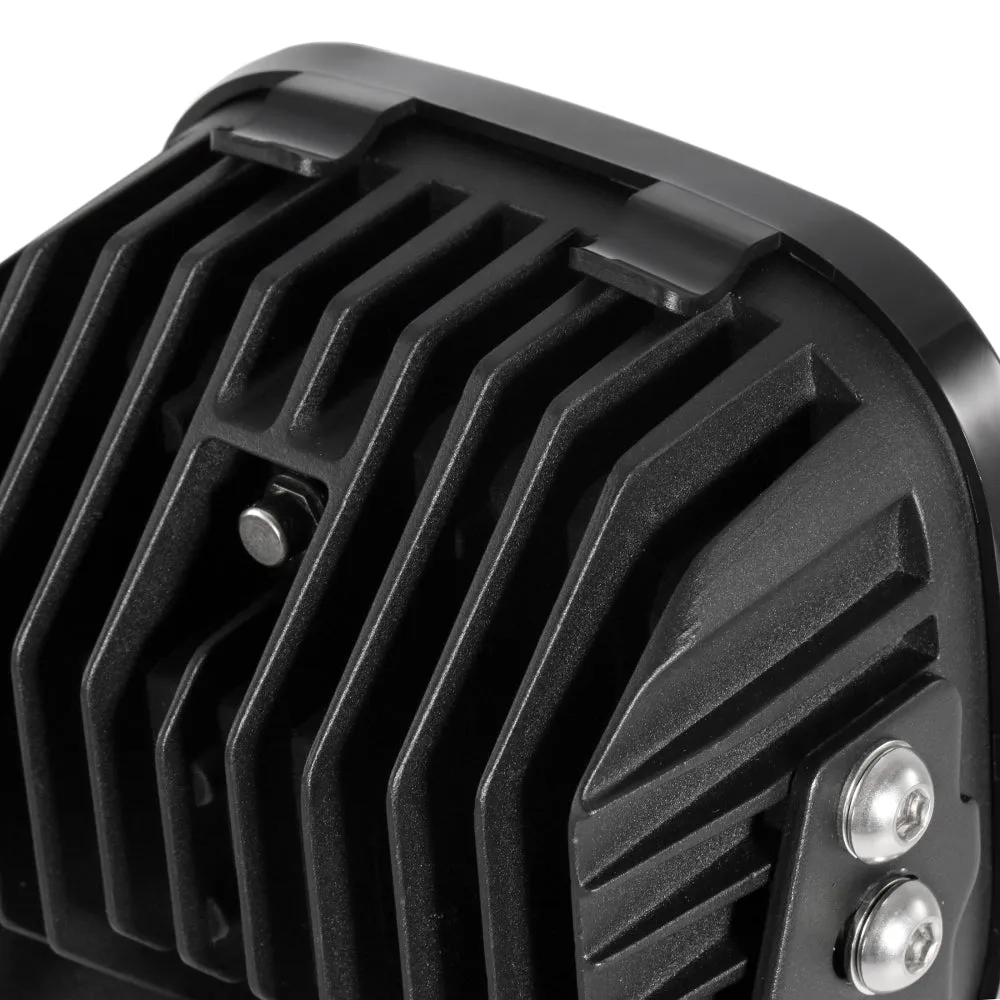

Housing Material: Aluminum alloy
Body Color: Black

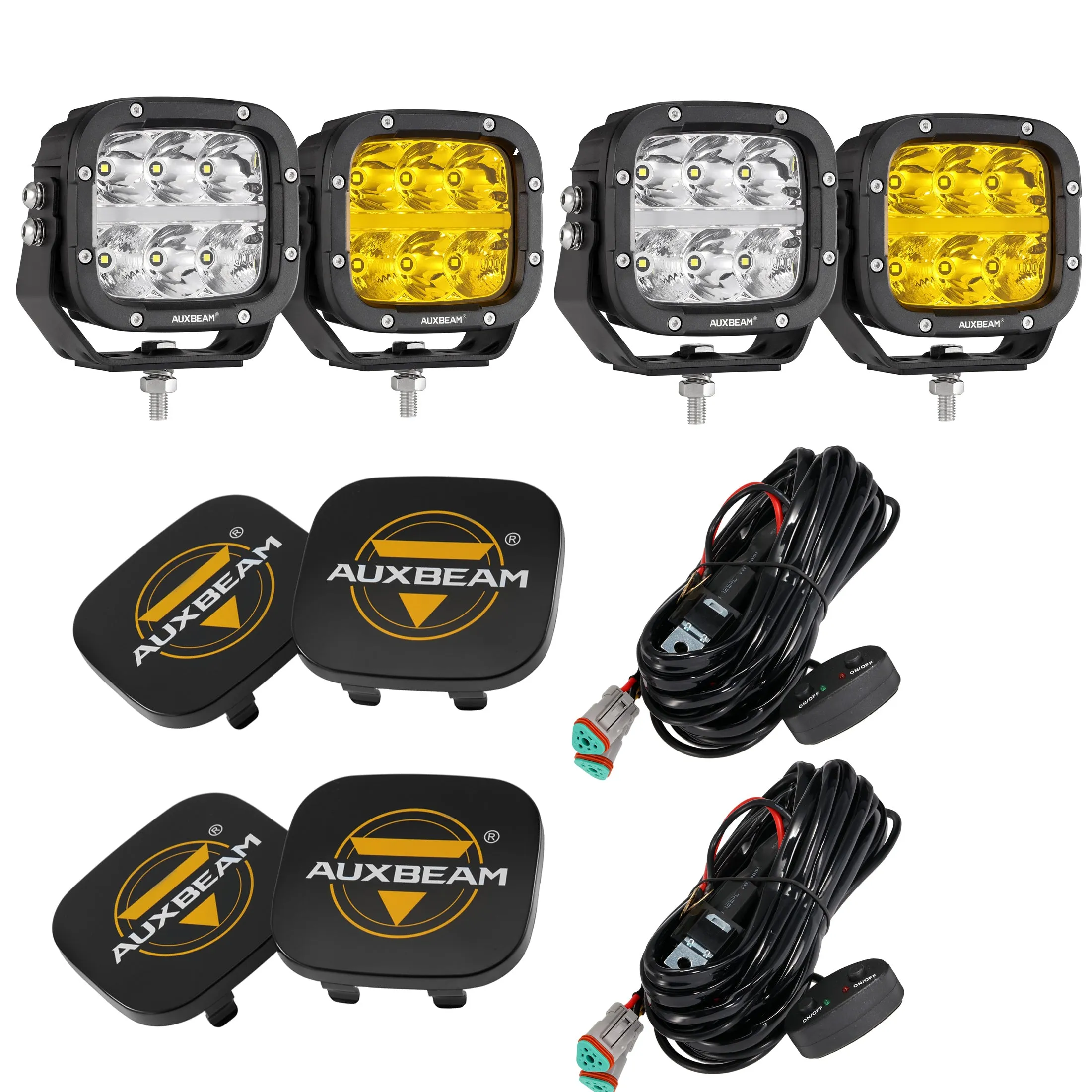

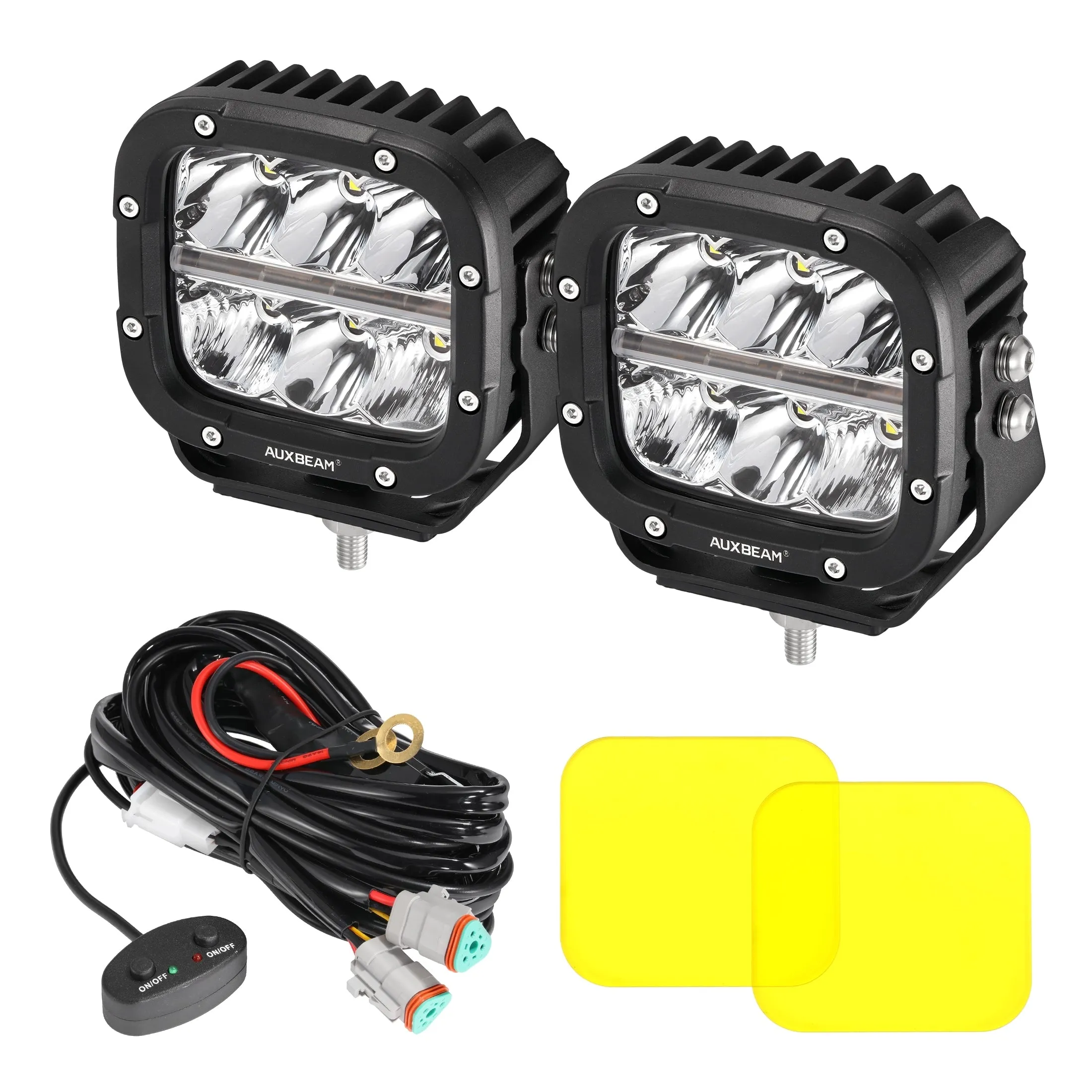

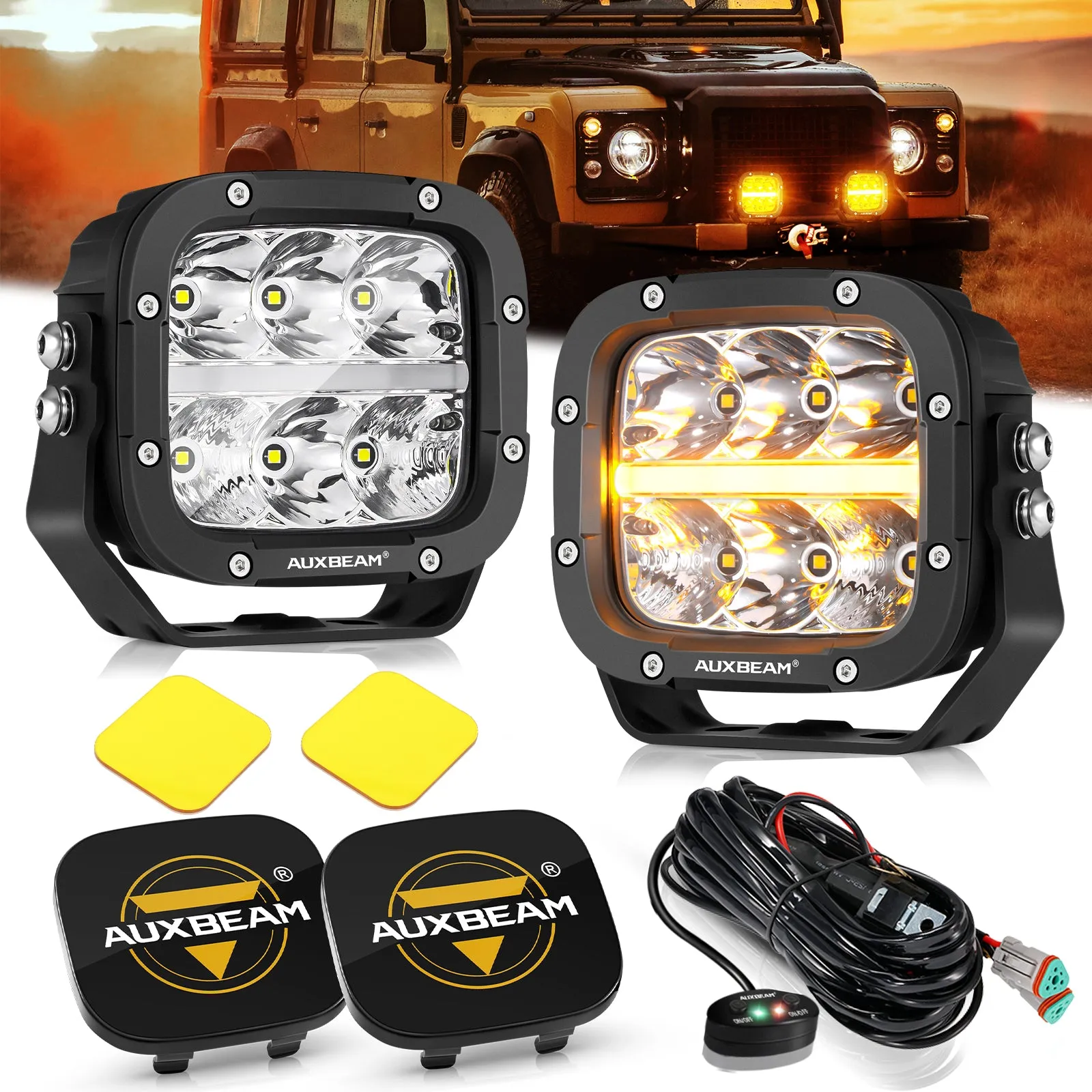

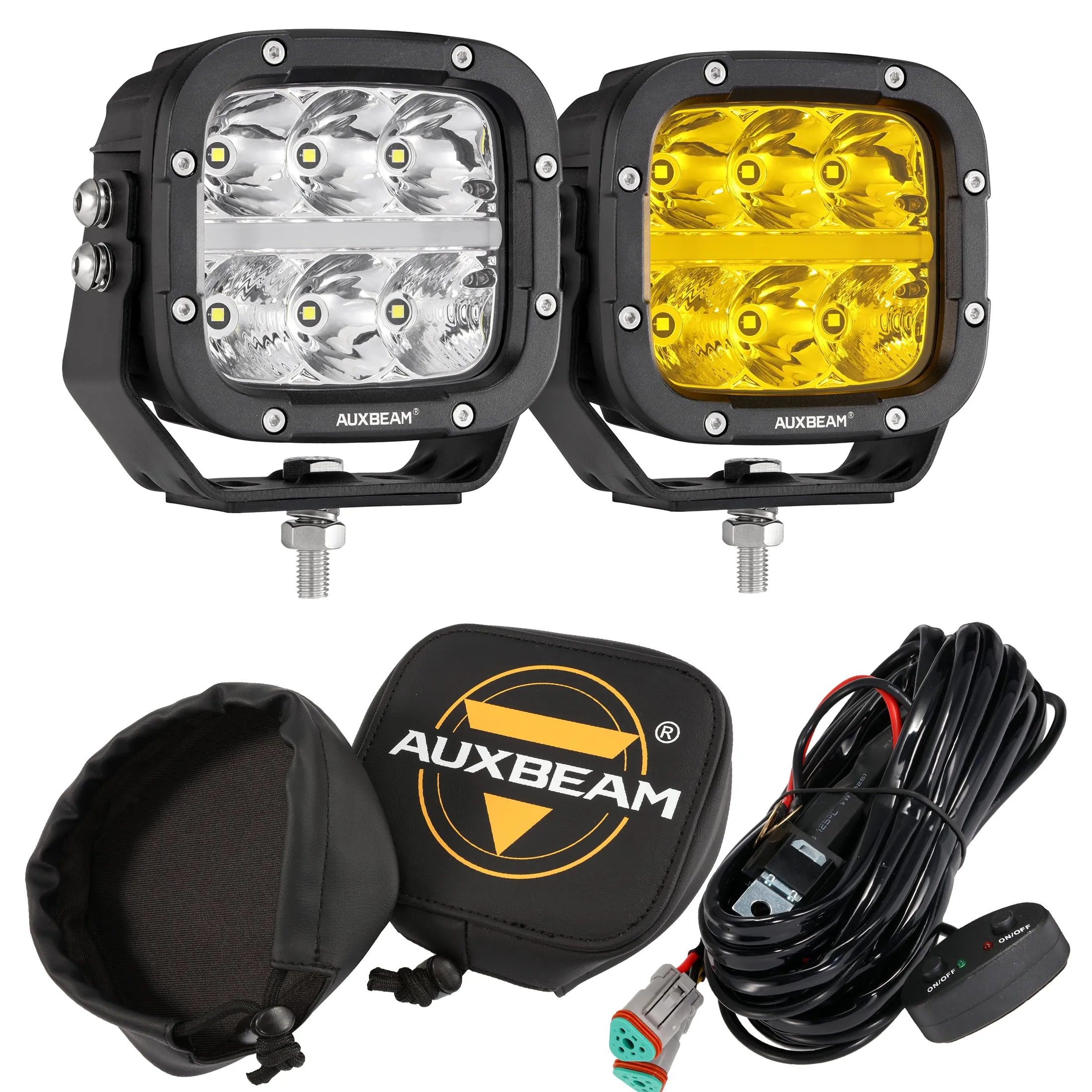

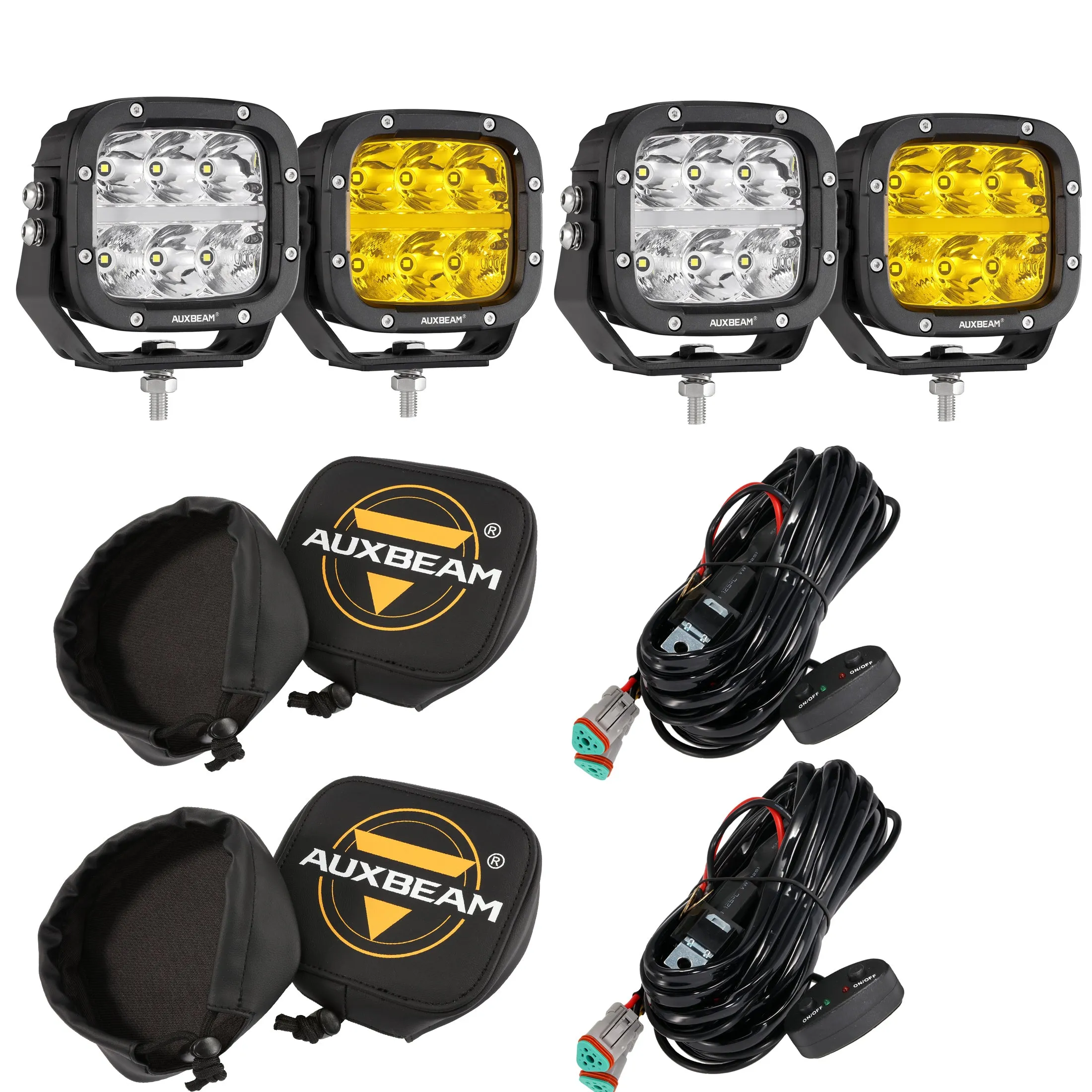

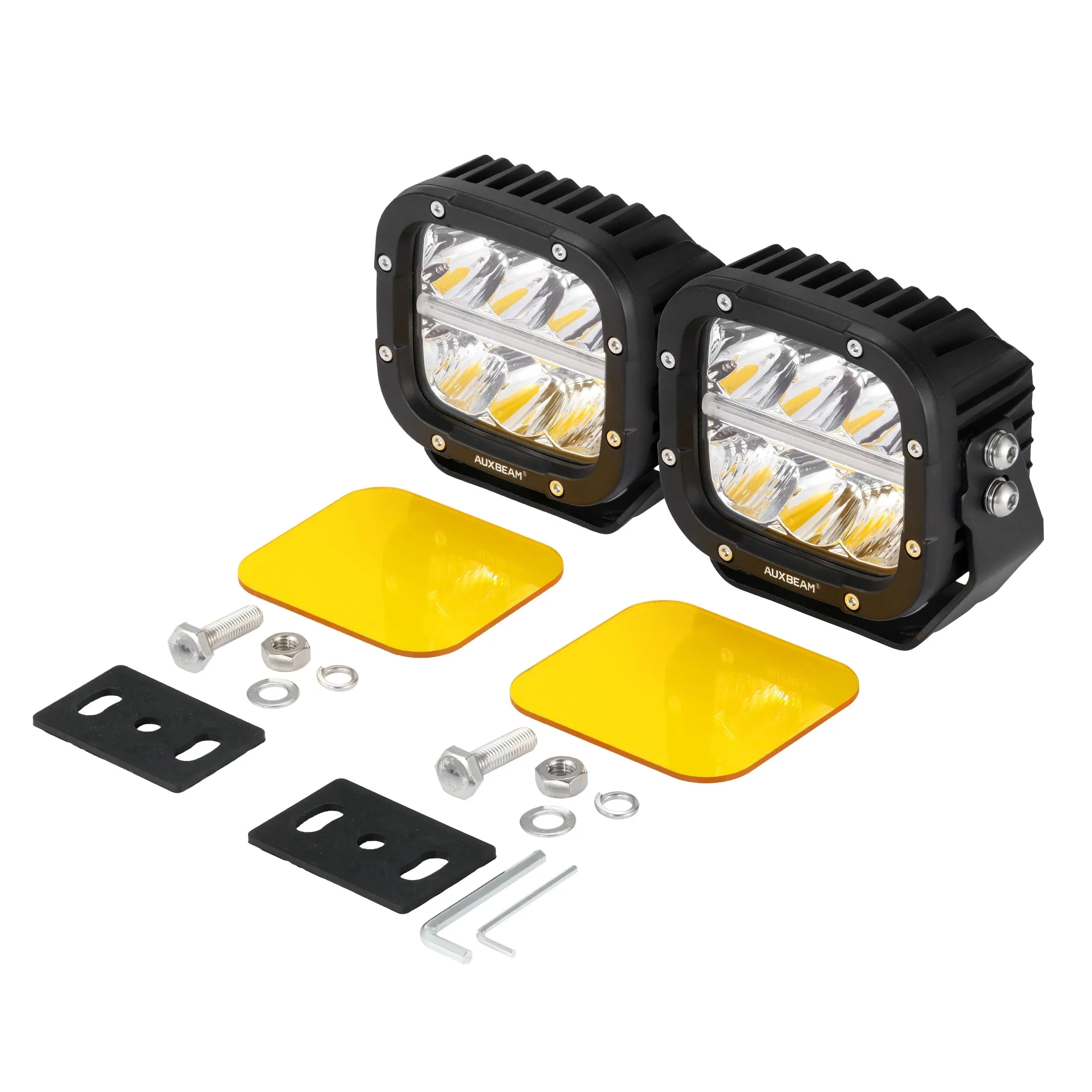

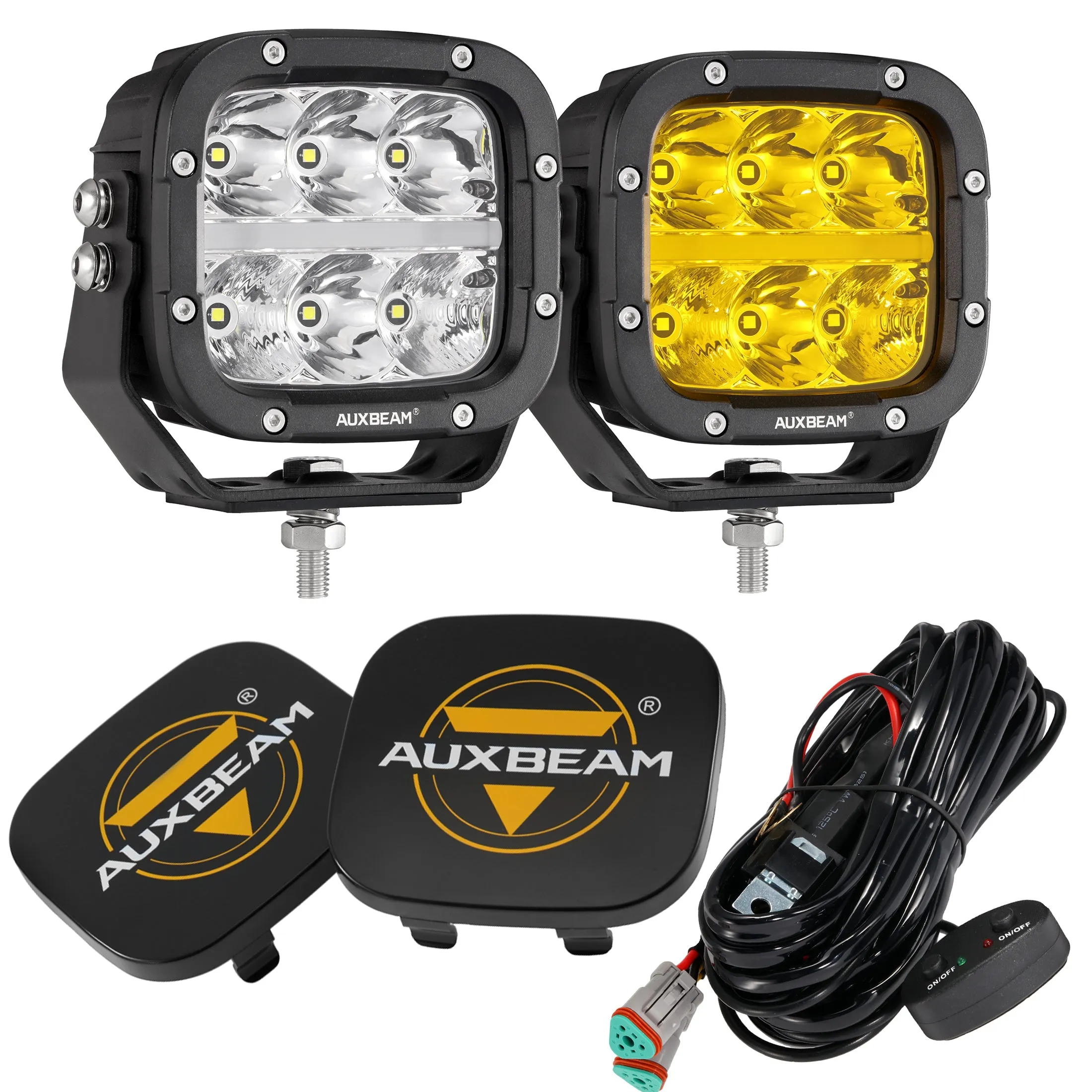

Package Included:
2 x LED Work Lights

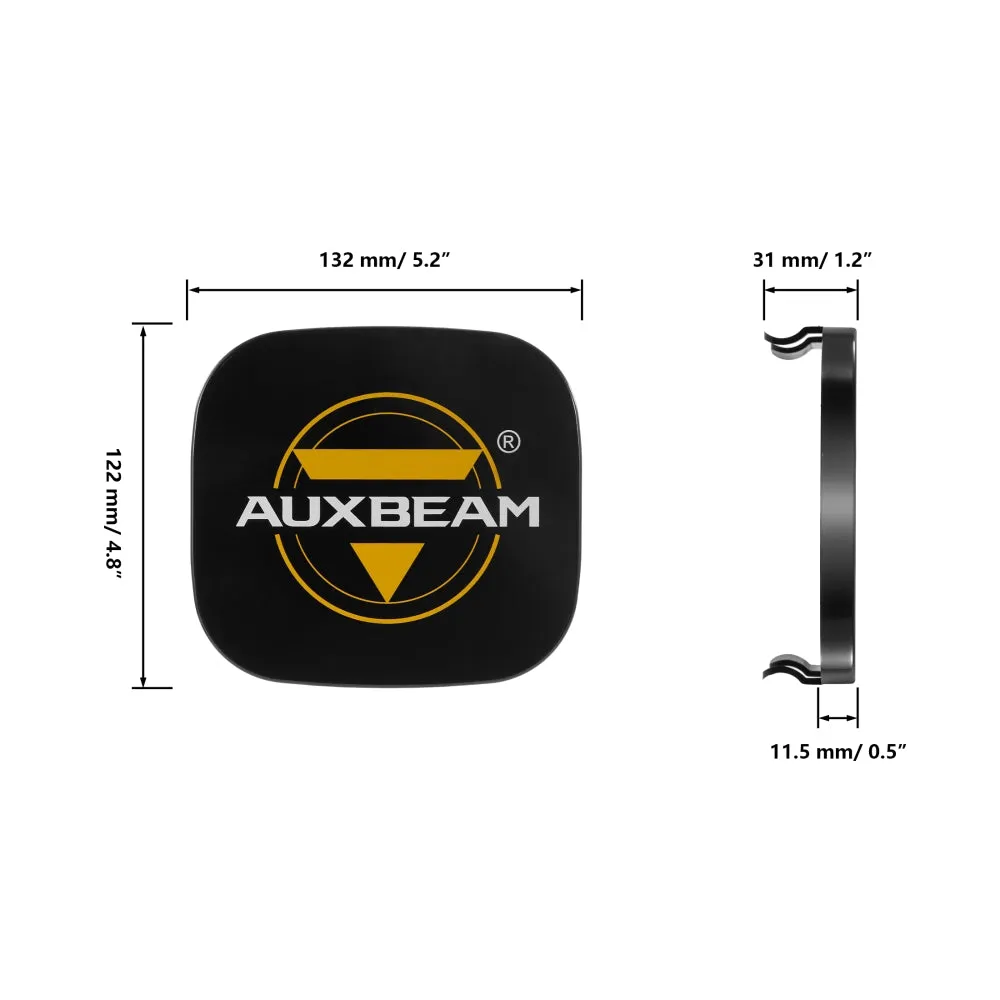

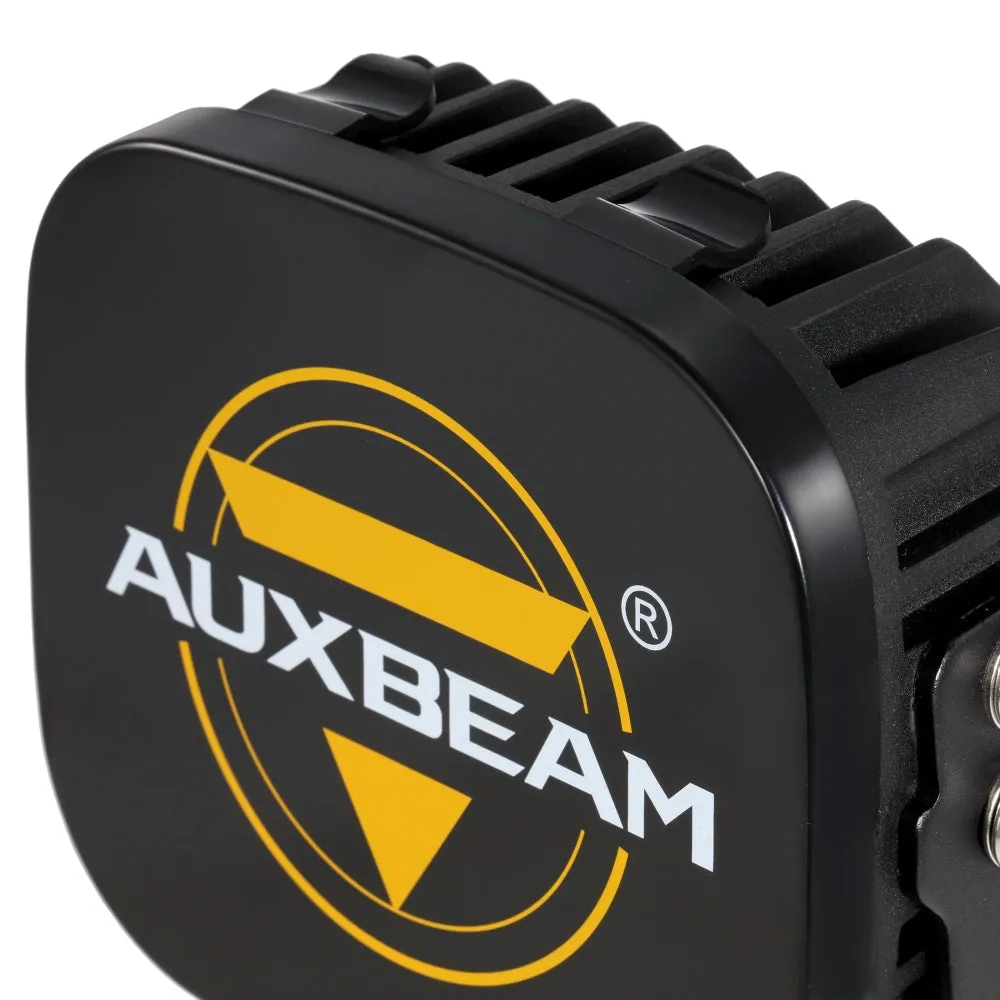

2 X Amber PC Cover
1 X Wiring Harness

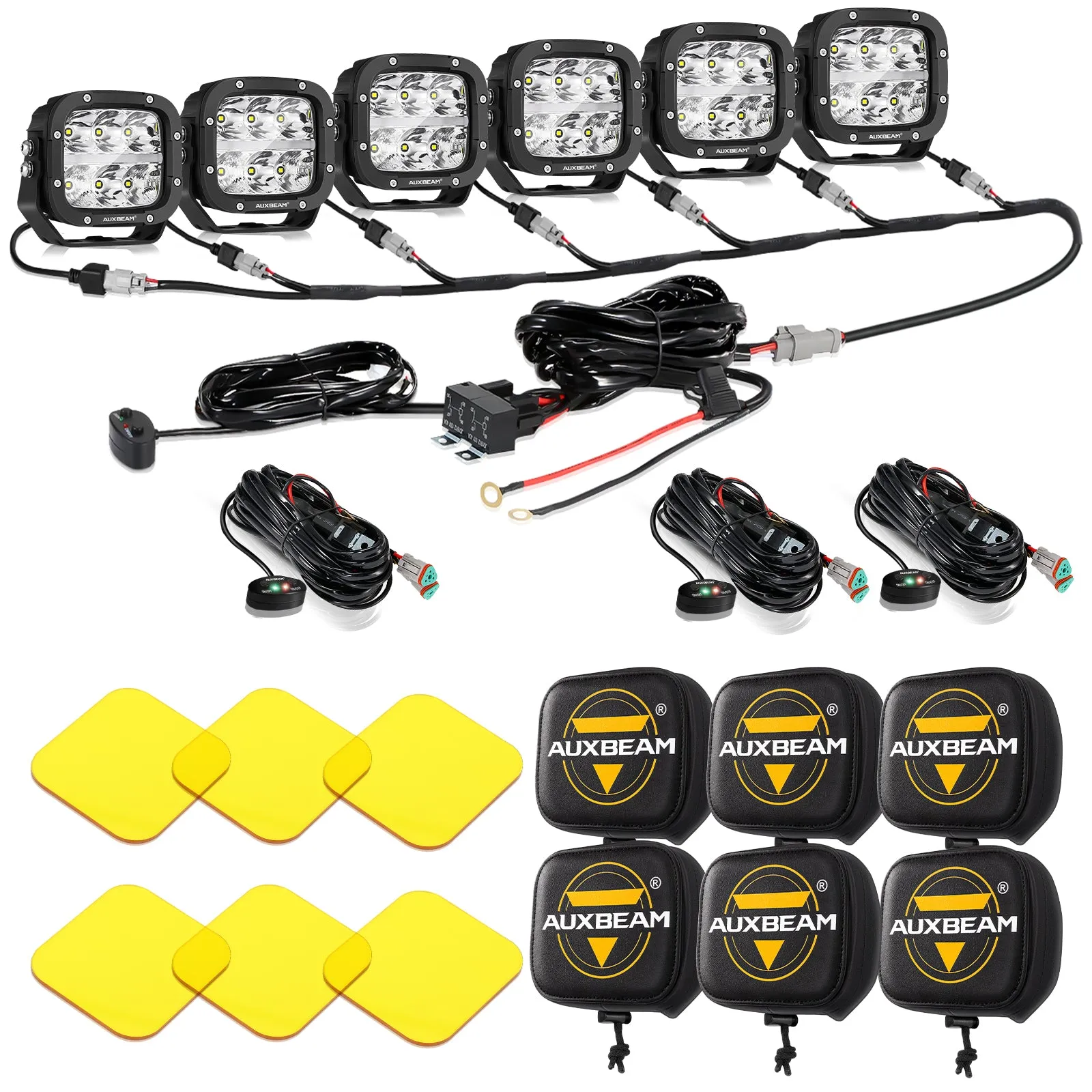

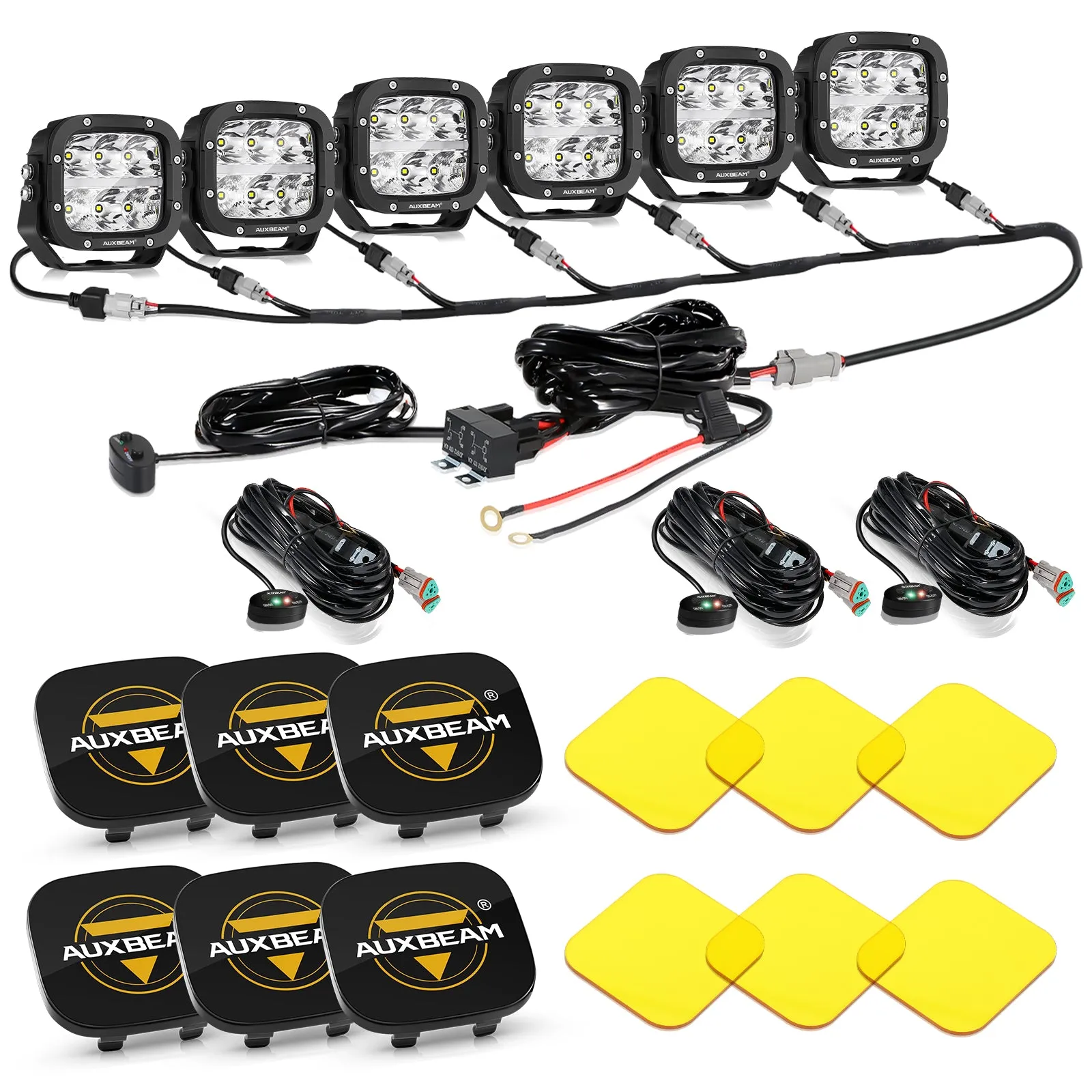

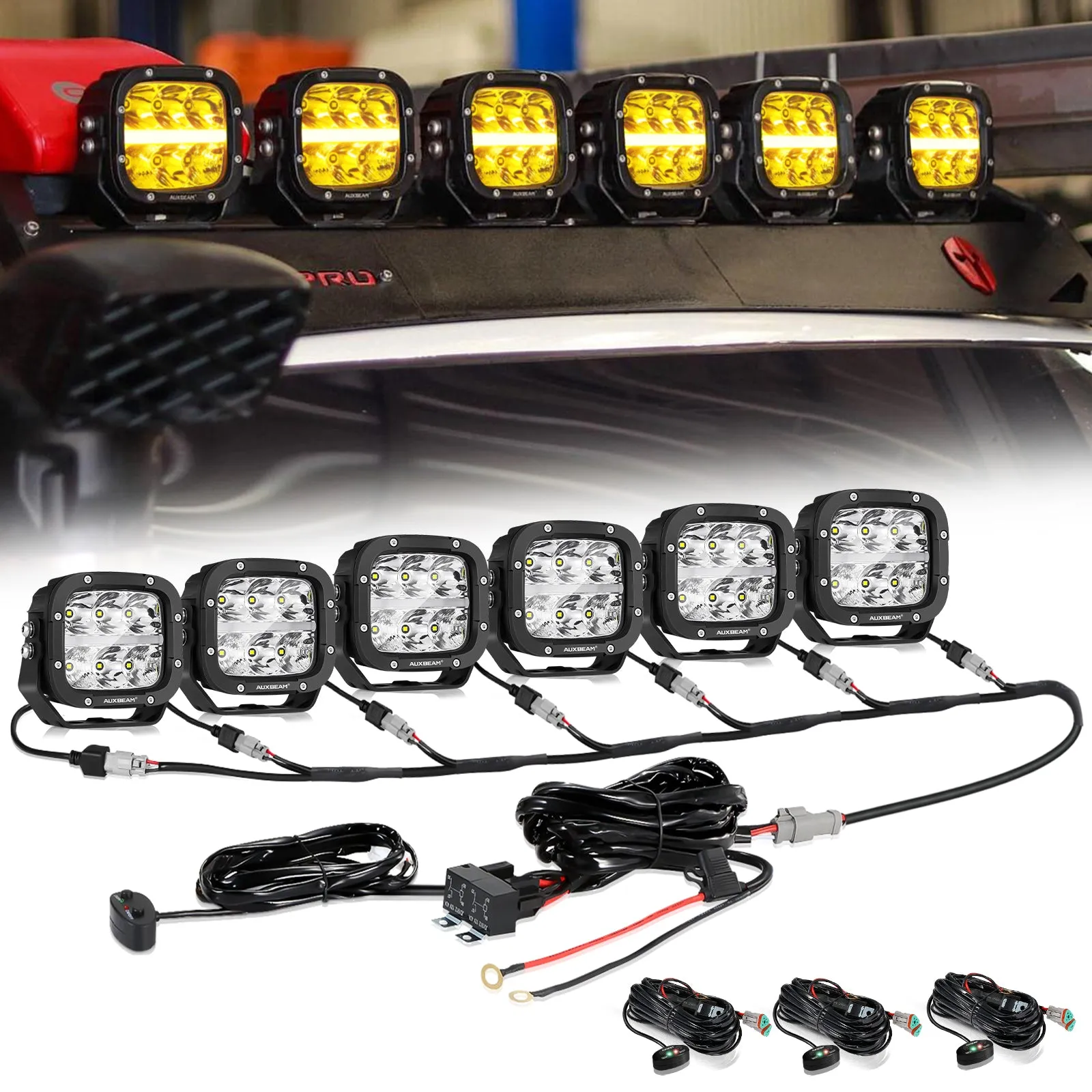

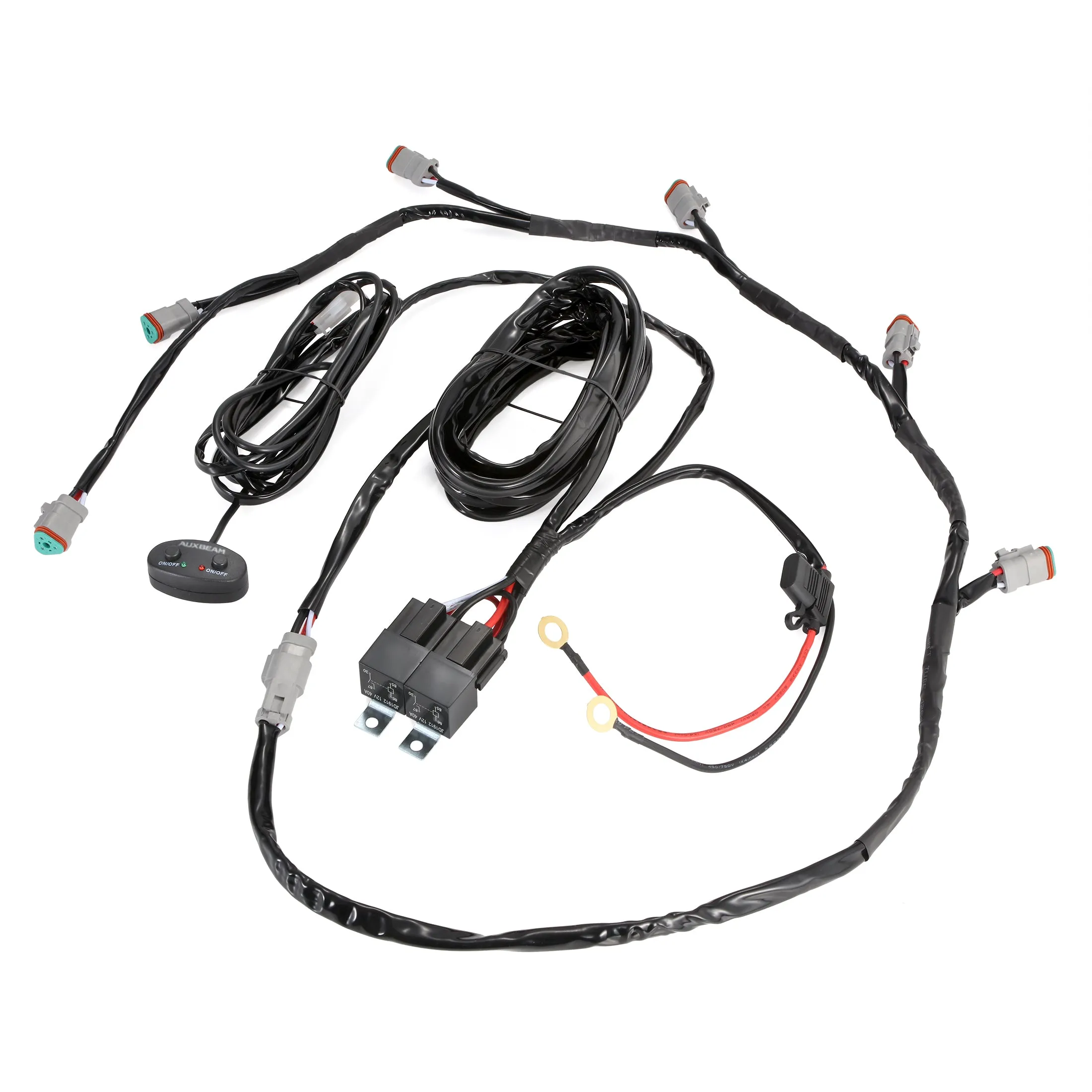

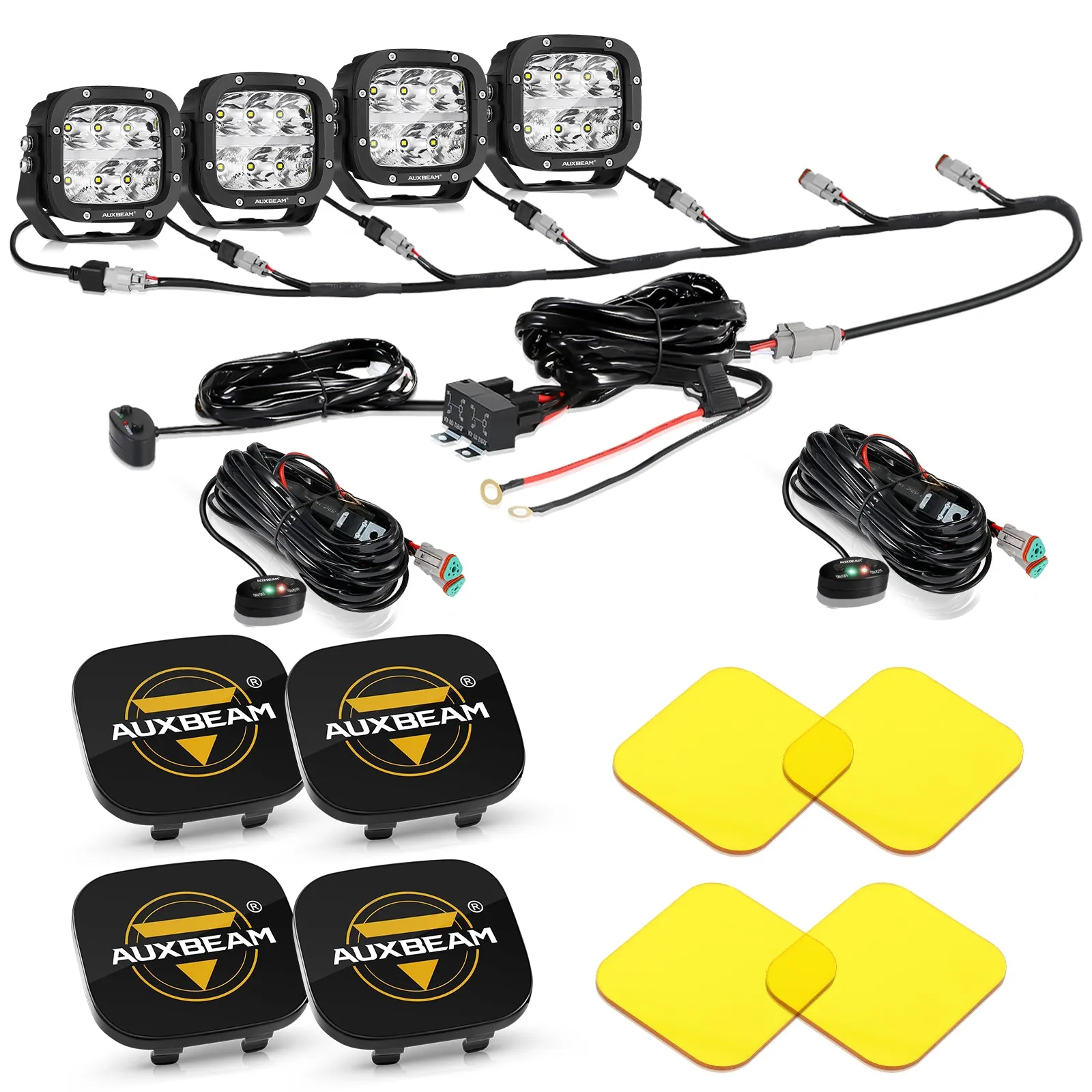

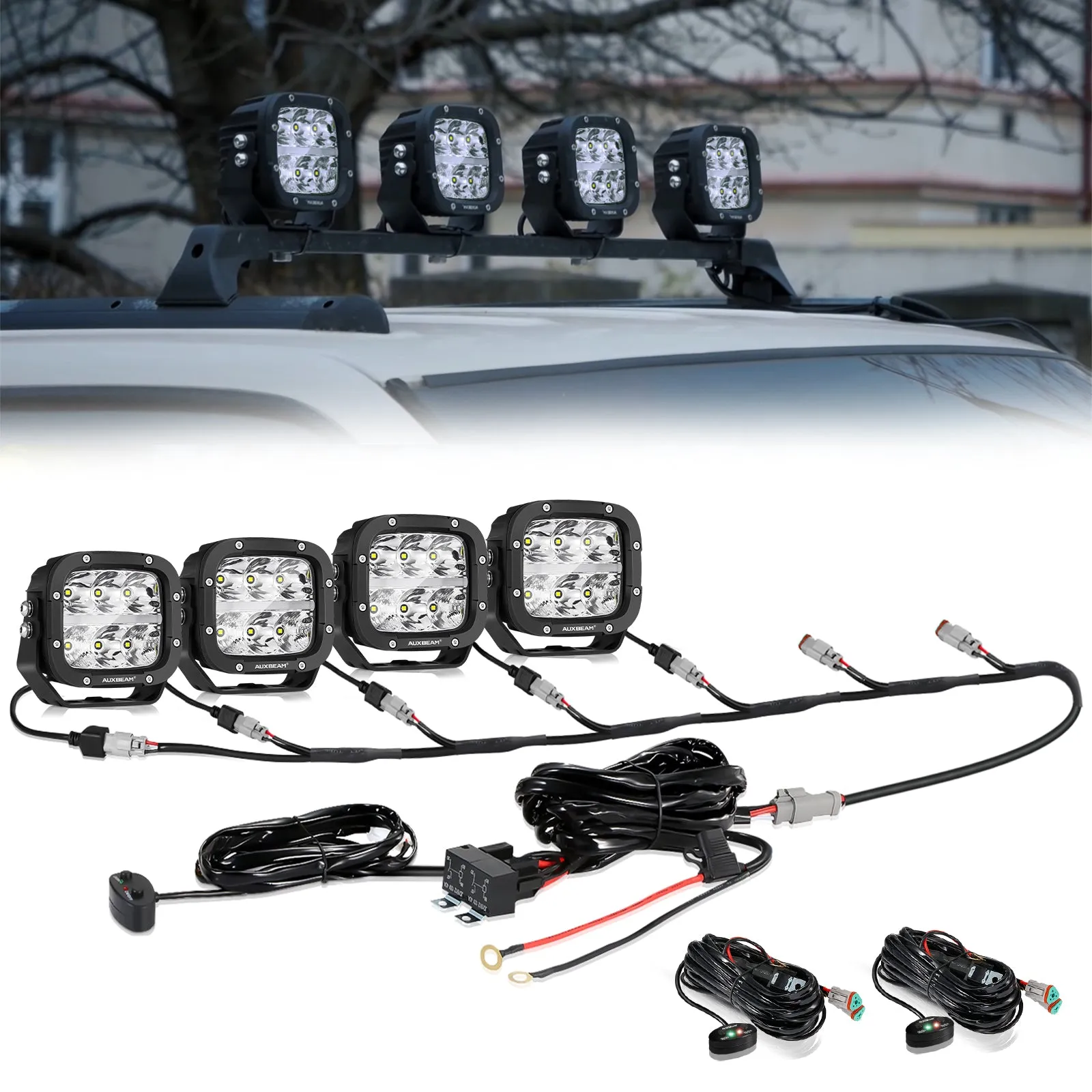

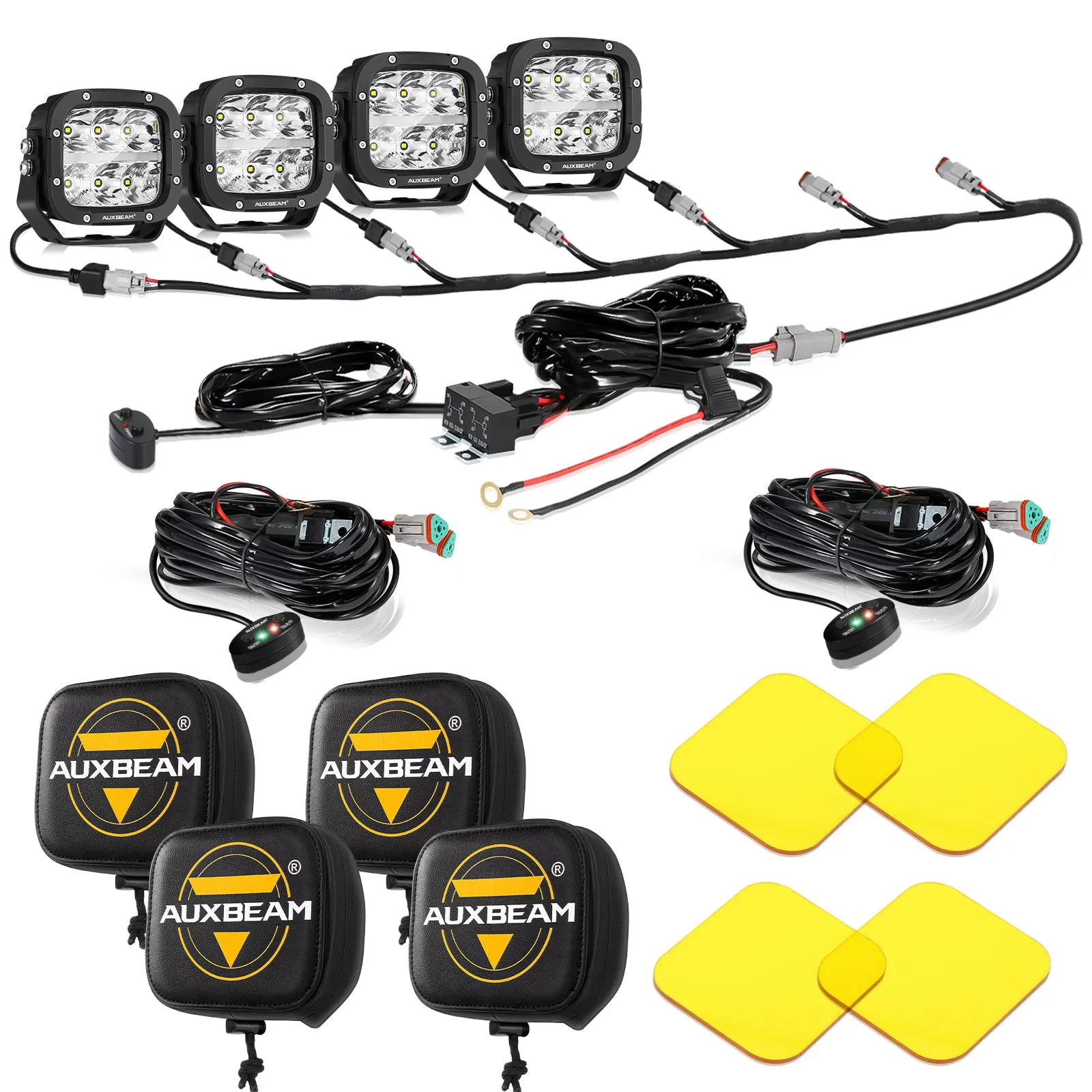

▶6-LED Pod Light Power Wiring Harness Kit
Recommend Fit for Our Pod Light SKU:
6-Pod Lights (A maximum of six pod lights can be installed):
ZD000753/ZD000765/ZD000764/ZD000752/ZD000762/ZD000763/ZD000820/ZD000821
4-Pod Lights (A maximum of four pod lights can be installed):
ZD000617/ZD000483/ZD000484/ZD000696/ZD000692
Features:
Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.
Specification:
Connect Number Light: Max 6 Pods
Switch Button: Three Mode（Main Light,DRL and Both)
Wire Length: 3M Extension Cord 1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm

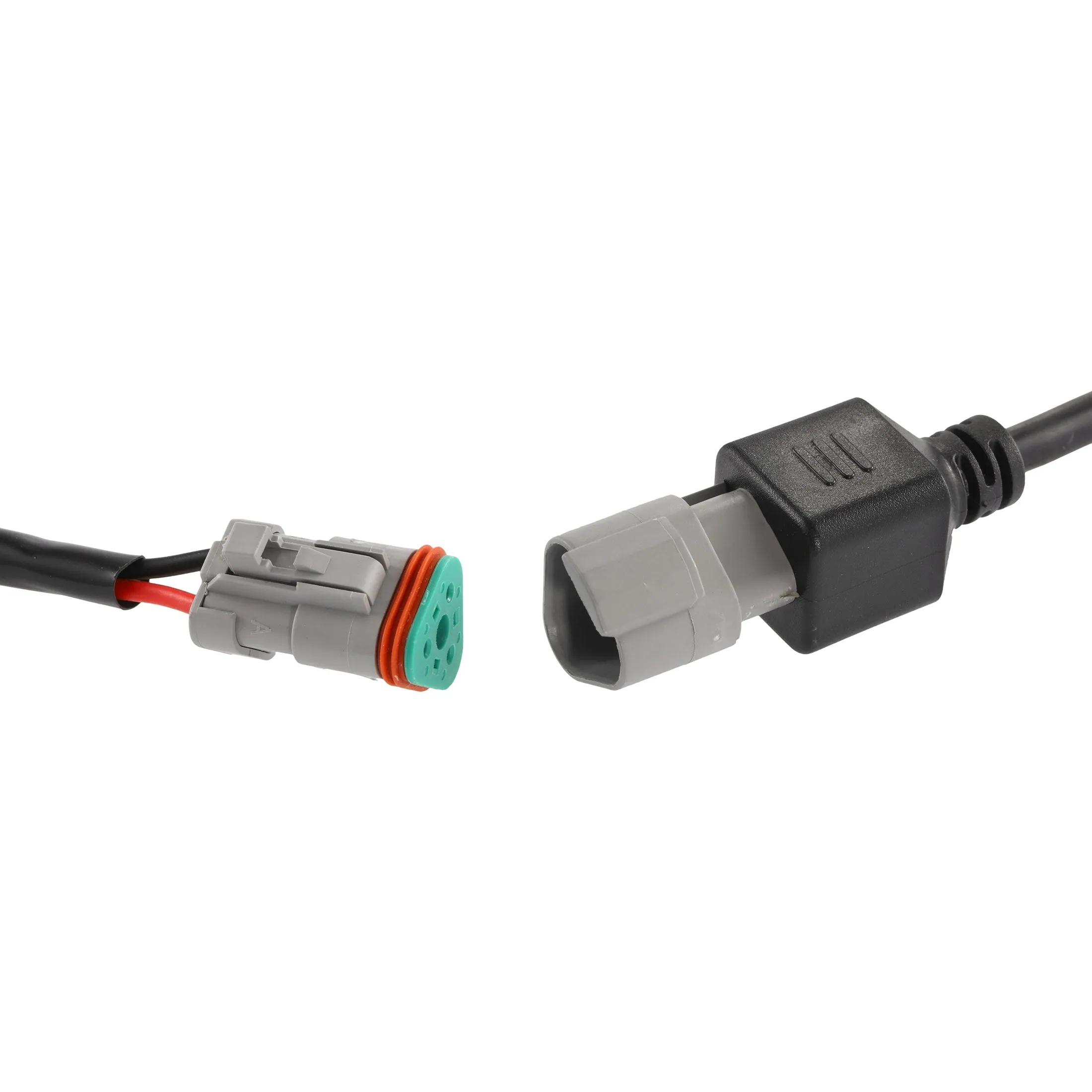

DT-plug Connector: 3 PIN
Wire Size: 10AWG national standard（DRL 18AWG）
Wire Material: 5 mm² copper wire (DRL 0.75mm²)
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W(current 40A)(DRL 72W&6A)
Fuse Size: 40A
Delay: Double 12V Delay
