Now with improved performance.

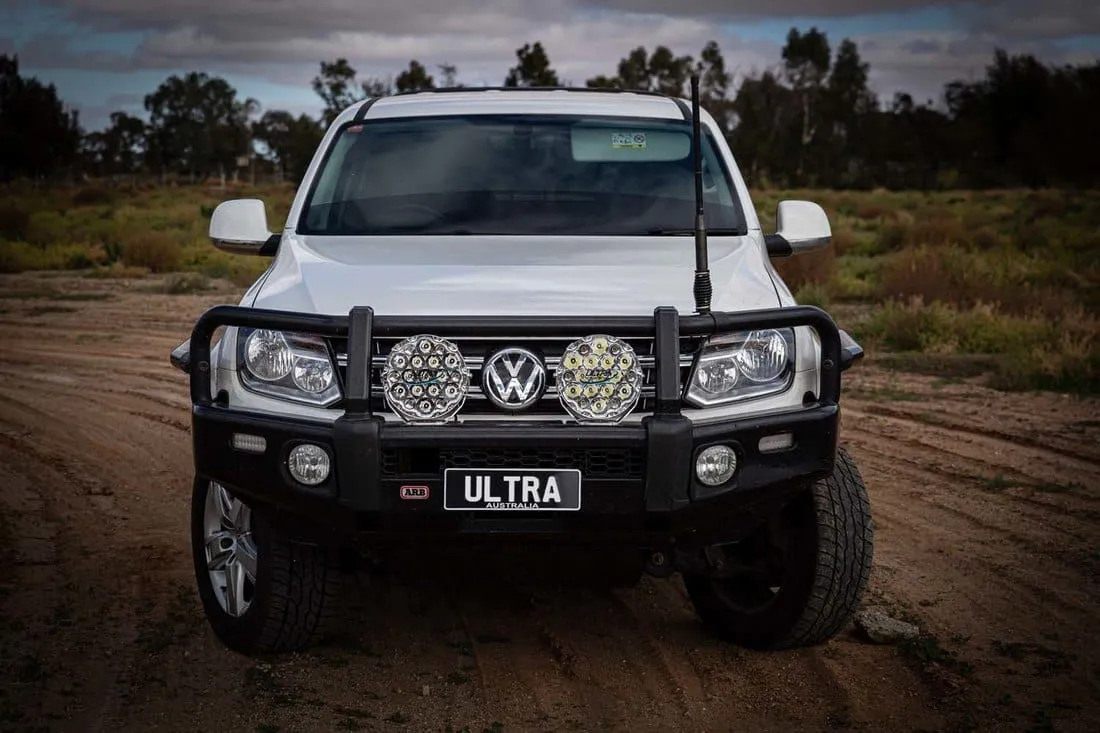

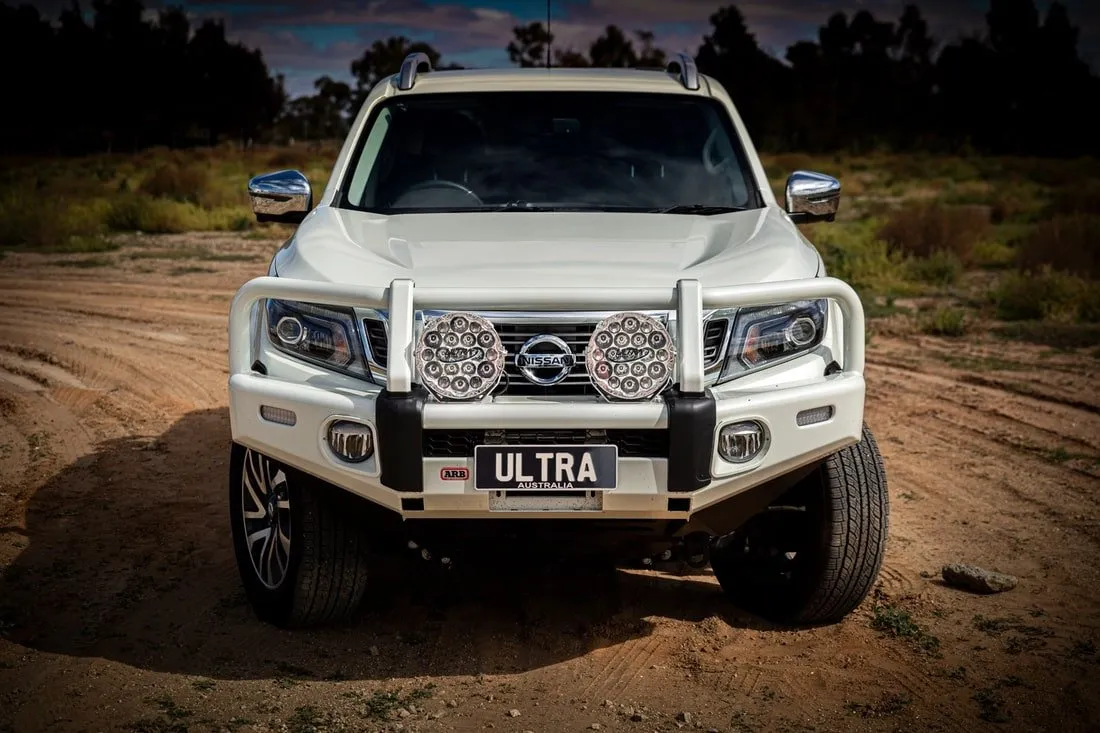

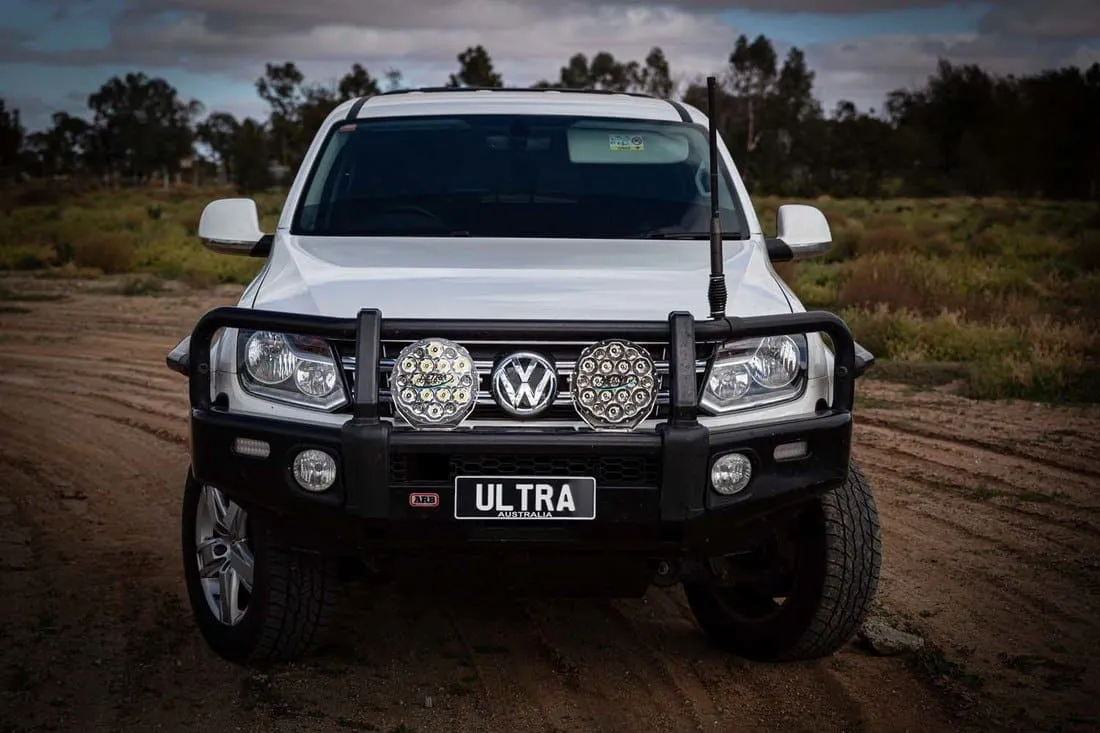

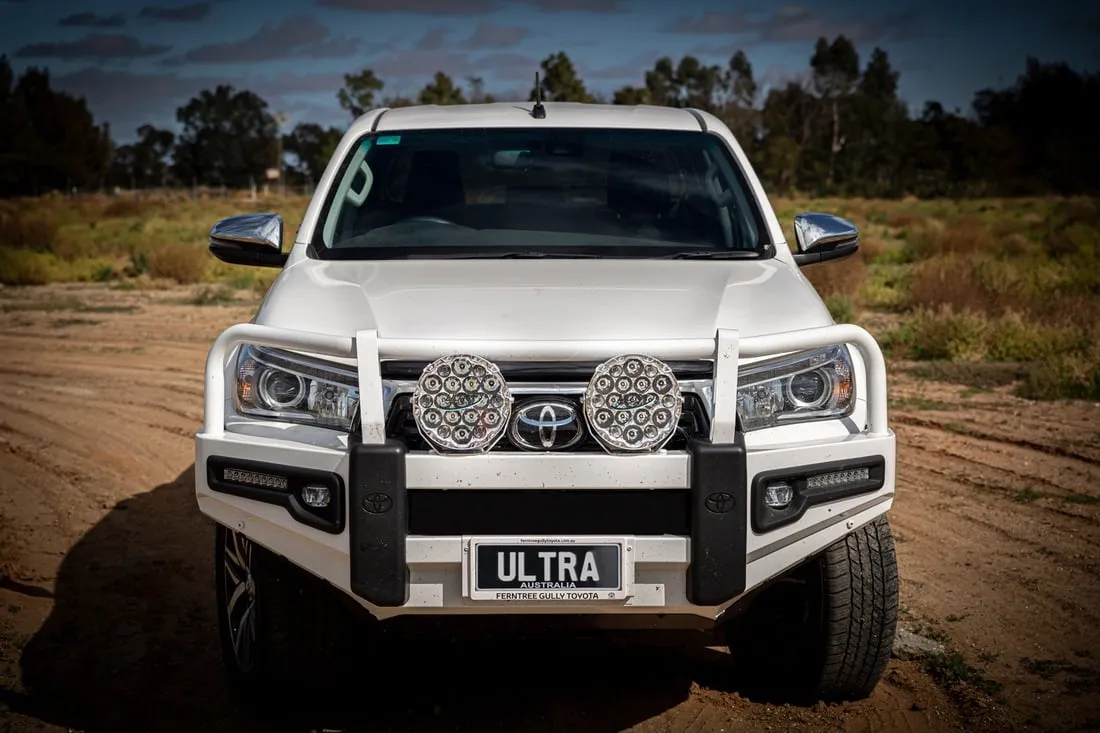

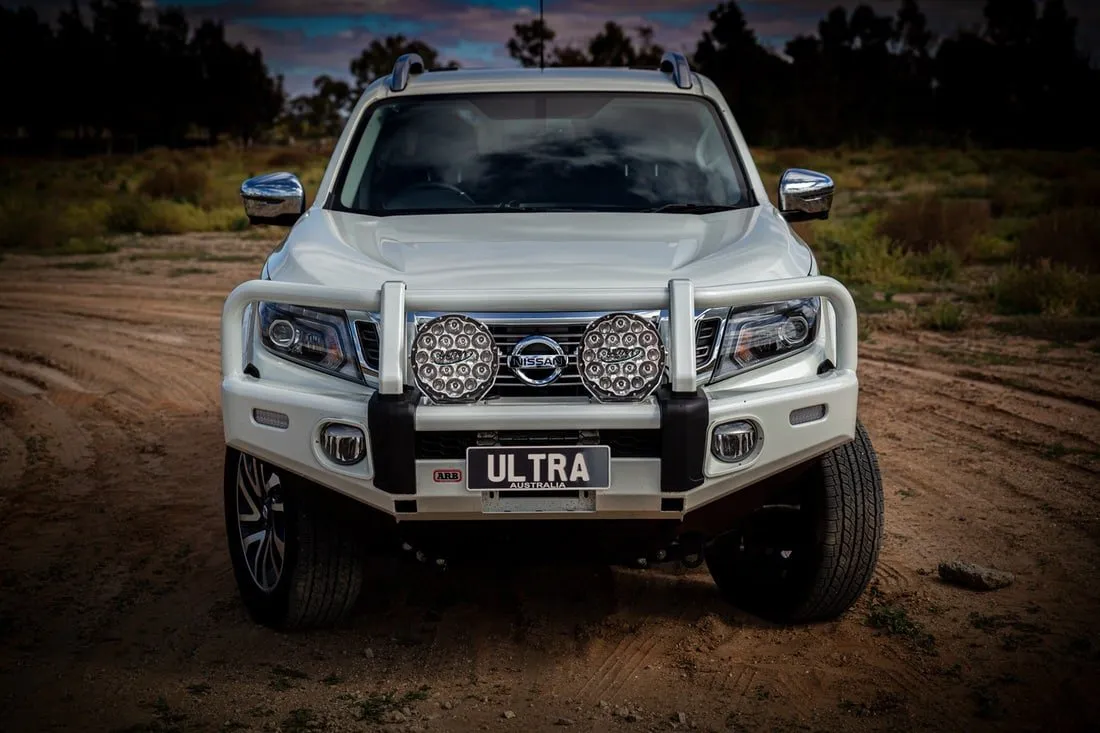

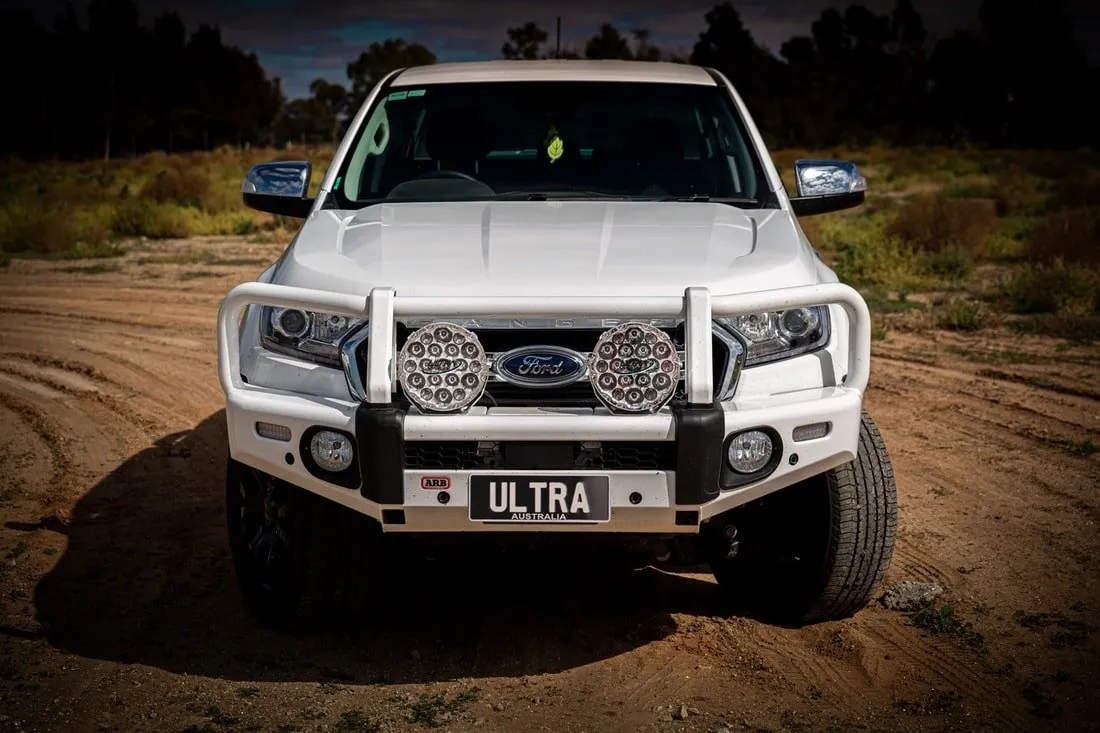

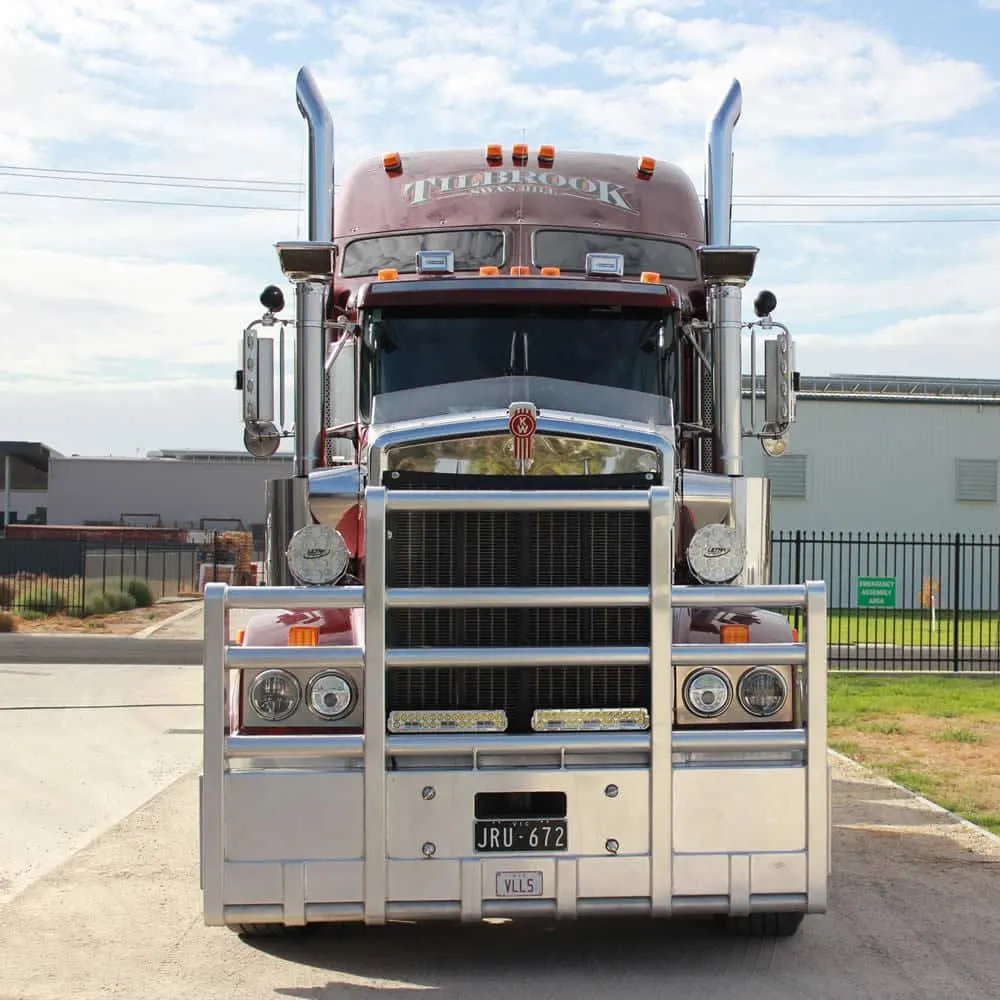

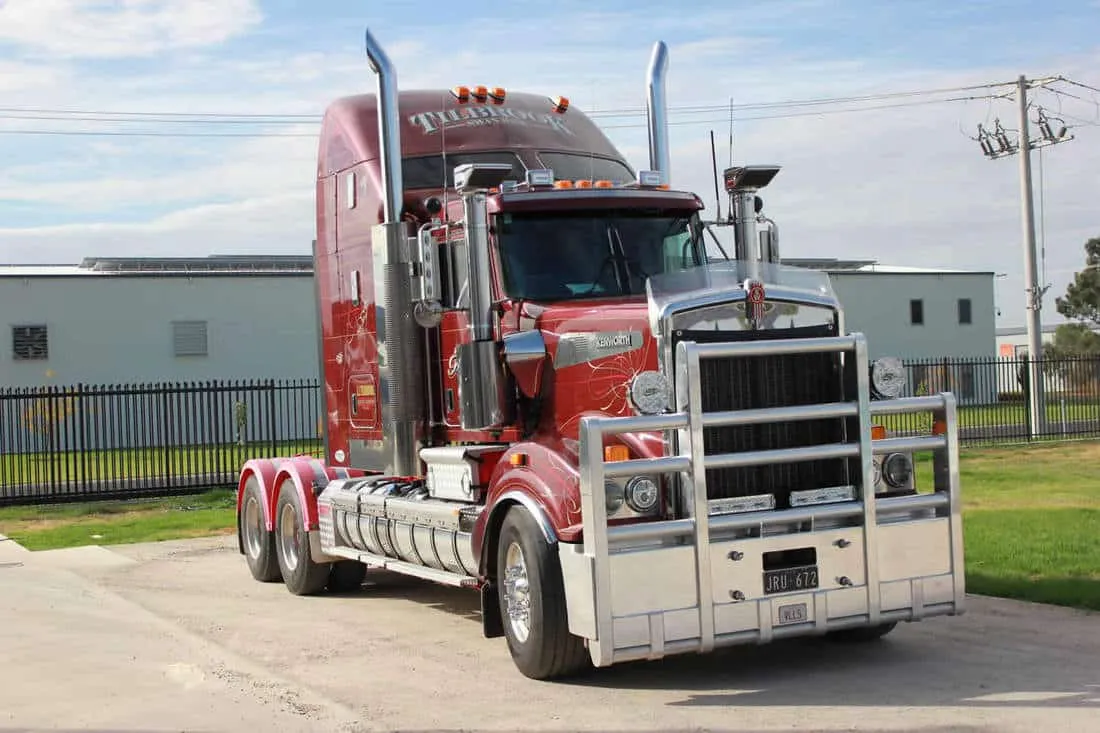

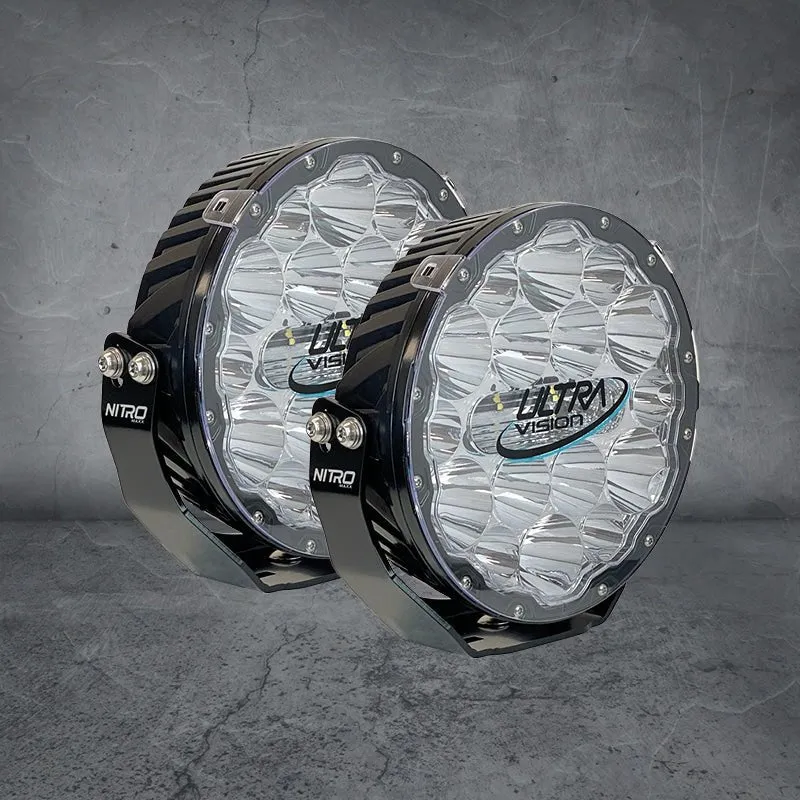

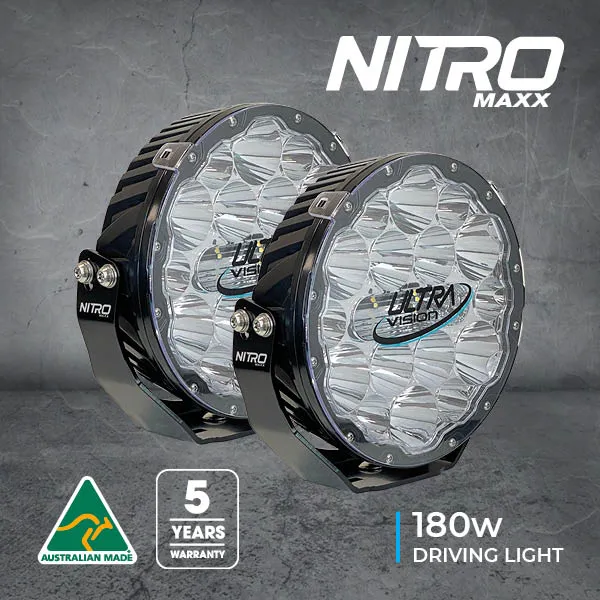

The Nitro 180 Maxx Driving Lights set an entirely new standard of performance for LED driving lights.

Utilising the sophisticated Contrl® Optics the light output is optimised to give an unmatched penetrating beam. The WIDR optic further increases the width of the beam by 72% than its previous design at 100m distance. In addition, a Hi/lo function reduces the overall power to 20% giving a wide even flood of light for more built up areas or when approaching traffic that is still a distance away. The Nitro 180’s are the complete package, featuring a heavy duty wiring harness, anti-theft nuts, polycarbonate lens covers and the proven 4mm stainless steel tig welded bracket featuring a lifetime warranty, so you are set to take on anything that comes your way.

By investing in Nitro 180 Maxx’s you can be confident you’ve made the right choice.

---

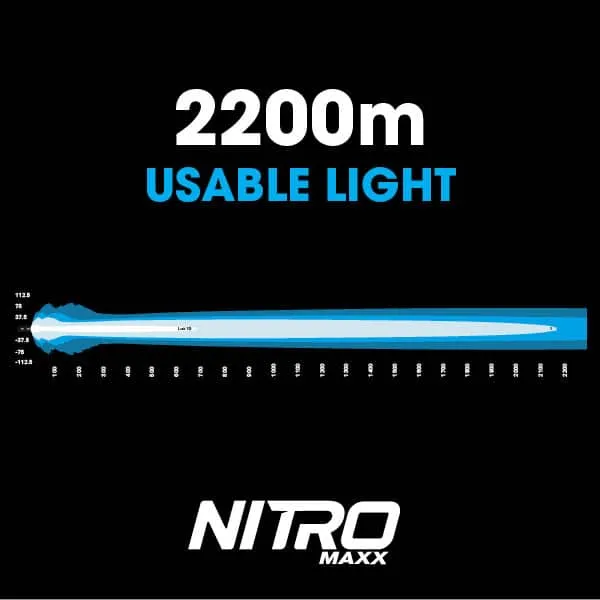

Beam Patterns

---

Need a Wiring Diagram?

SPECIFICATIONS	Nitro 180 Maxx
Wattage	180W (per lamp)
Light Source	19 x High Power LED’s (per lamp)
Light Output – Raw	29,742 Lumens (per pair)
Light Output – Effective	23,065 Lumens (per pair)
Voltage	9-36V
Current Draw	27.4.7A @ 13.5V (per pair)
Operating Temperature	-40°C to 80°C
Waterproof rating	IP68
Connector Type Plugs	3 Pin Heavy Duty Deutsch Plug
Housing	Die-Cast Alloy
Outer Lens Construction	Polycarbonate
Bracket	4mm Stainless Steel
Colour Temperature	4500K or 5700K
Lifespan	50,000 Hours

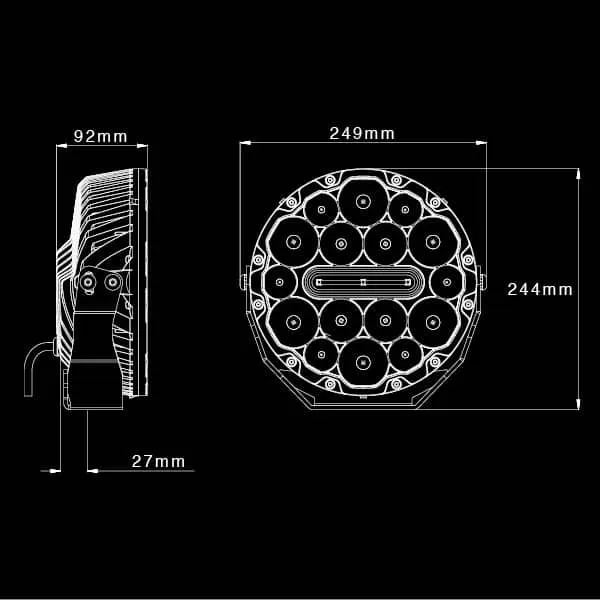

Diameter	230mm
Net Weight	3.45kg (per lamp)
Mounting Suitable	All Types
Beam Type	Widr®
Warranty	5 Years
Hi/Lo Wiring Harness & Anti-Theft nuts included	Yes
PART NUMBERS
Widr® 5700K, Black Rim	PVM2318LEDW/PR
Widr® 4500K, Black Rim	PVM2318LEDW4/PR
Widr® 5700K, Chrome Rim	PVM2318LEDW-C/PR
Widr® 4500K, Chrome Rim	PVM2318LEDW4-C/PR
